QATM提供用于金相样品制备和分析的全系列高品质耗材。所有的耗材都经过全面测试和选择，完美匹配QATM设备。

在这个页面你可以申请报价。

请选择您想包括的项添加到你的询价单。你可以选择项目从任何产品页面。 你的询价单将会显示在网站的右上角。

通用咨询

不确定您需要那些项目或者您想要一个总报价?

给我们发送一般性咨询
  • Reset search


碳化硅精密切割轮



• for non-ferrous metals

Ø厚度内径粘结剂
95017765
100 mm0.5 mm12.7 mm树脂5 pcs
95017766
150 mm0.8 mm12.7 mm树脂5 pcs
92004998
150 mm1 mm12.7 mm树脂5 pcs
92004155
200 mm1.5 mm12.7 mm树脂5 pcs
* 每个订单可获取一个变径环


变径环



氧化铝精密切割轮



Fine-grained
• for universal application of materials of higher hardness
• precise cuts and high surface quality
• optimal for delicate samples and sensitive materials

Ø厚度内径粘结剂粒度
92002643
100 mm0.25 mm12.7 mmRubberFine grid5 pcs
92002645
100 mm0.4 mm12.7 mmRubberFine grid5 pcs
92002644
125 mm0.45 mm12.7 mmRubberFine grid5 pcs
92002769
150 mm0.45 mm12.7 mmRubberFine grid5 pcs
95014126
200 mm0.45 mm12.7 mmRubberFine grid5 pcs


Coarse-grained
• for universal use with lower hardness materials
• ideal for rough geometries and mounted sample material
• fast and efficient cuts

Ø厚度内径粘结剂粒度
92002646
125 mm0.8 mm12.7 mmRubberCoarse grid5 pcs
92002770
150 mm0.6 mm12.7 mmRubberCoarse grid5 pcs
92002647
200 mm0.8 mm12.7 mmRubberCoarse grid5 pcs
92004159
150 mm1 mm12.7 mm树脂Coarse grid5 pcs


Diamond precision cut-off wheels
Bond: Bronze



• for universal application and carbides

Ø厚度内径粘结剂粒度
92002397
75 mm0.3 mm12.7 mmBronzeD1811 pc
92002401
100 mm0.3 mm12.7 mmBronzeD1811 pc
92002405
125 mm0.5 mm12.7 mmBronzeD2131 pc
92002409
150 mm0.5 mm12.7 mmBronzeD2131 pc
95016591
175 mm0.65 mm12.7 mmBronzeD2131 pc
95004814
200 mm0.5 mm12.7 mmBronzeD2131 pc


• for glass, minerals as well as brittle and hard ceramic materials

Ø厚度内径粘结剂粒度
92002398
75 mm0.3 mm12.7 mmBronzeD1811 pc
92002402
100 mm0.3 mm12.7 mmBronzeD1811 pc
92002406
125 mm0.5 mm12.7 mmBronzeD2131 pc
92002410
150 mm0.5 mm12.7 mmBronzeD2131 pc
92006368
200 mm0.6 mm12.7 mmBronzeD2131 pc


• for hard metals and hard ceramic materials

Ø厚度内径粘结剂粒度
95010518
150 mm0.5 mm12.7 mmBronzeD2131 pc
95008773
150 mm0.5 mm12.7 mm树脂D2131 pc
95015121
200 mm1.0 mm12.7 mmBronzeD1511 pc


• for assembled printed circuit boards and filigree component geometries

Ø厚度内径粘结剂粒度
92002400
75 mm0.3 mm12.7 mmBronzeD91/1071 pc
92002404
100 mm0.3 mm12.7 mmBronzeD91/1071 pc
92002408
125 mm0.5 mm12.7 mmBronzeD91/1071 pc
92002412
150 mm0.5 mm12.7 mmBronzeD91/1071 pc


• for mounted samples, composites, CFRP, GFRP and plastics

Ø厚度内径粘结剂粒度
95012928
200 mm1.0 mm12.7 mmGalvanicD641 pc
95007077
200 mm1.2 mm12.7 mmGalvanicD1261 pc


CBN精密切割轮
粘结剂: 青铜

• for composites and rigid materials

Ø厚度内径
92002444
125 mm0.5 mm12.7 mm1 pc
92002445
150 mm0.65 mm12.7 mm1 pc
92002446
175 mm0.9 mm12.7 mm1 pc
92006419
200 mm0.5 mm12.7 mm1 pc
其他尺寸需求，请致电垂询


Saw blade precision cut-off wheel

• for plastics, non-ferrous metals

Ø厚度内径
95009083
150 mm1.4 mm12.7 mm


Premium silicon carbide cut-off wheels
Bond: Resin

Type NF-A, Purple
• for non-ferrous metals (30-300HV)

Ø厚度内径粘结剂
95012531
250 mm1.5 mm32 mm树脂10 pcs
95012538
300 mm2.0 mm32 mm树脂10 pcs
95012545
350 mm2.5 mm32 mm树脂10 pcs
95012552
400 mm3.0 mm32 mm树脂10 pcs
95012566
500 mm4.0 mm32 mm树脂5 pcs
95012573
600 mm4.5 mm32 mm树脂5 pcs


Type Ti-A, Pink
• for titanium and alloys, refractory metals (30-300 HV)

Ø厚度内径粘结剂
92002417
230 mm1.5 mm32 mm树脂10 pcs
95012530
250 mm1.5 mm32 mm树脂10 pcs
95012537
300 mm2.0 mm32 mm树脂10 pcs
92002427
350 mm2.5 mm32 mm树脂10 pcs
92002428
400 mm3.0 mm32 mm树脂10 pcs
for cut-off wheels with Ø 230 mm and 400 mm for titanium and titanium alloys, see type F aluminum oxide cut-off wheels


Type FS-A, Red
• for soft steel (30-300HV), non-ferrous metals, polymer (e.g., PMMA, PEEK, PTFE) due to hard bonding

Ø厚度内径粘结剂
95012529
250 mm1.5 mm32 mm树脂10 pcs
95012536
300 mm2.0 mm32 mm树脂10 pcs
95012543
350 mm2.5 mm32 mm树脂10 pcs
95012550
400 mm3.0 mm32 mm树脂10 pcs
95012564
500 mm4.0 mm32 mm树脂5 pcs
95012571
600 mm4.5 mm32 mm树脂5 pcs


Type FS-B, Orange
• for medium soft steel (200-450HV) e.g. unalloyed structural steels and low-alloy steels

Ø厚度内径粘结剂
95012528
250 mm1.5 mm32 mm树脂10 pcs
95012535
300 mm2.0 mm32 mm树脂10 pcs
95012542
350 mm2.5 mm32 mm树脂10 pcs
95012549
400 mm3.0 mm32 mm树脂10 pcs
95012563
500 mm4.0 mm32 mm树脂5 pcs
95012570
600 mm4.5 mm32 mm树脂5 pcs


Type FS-FR, fabric reinforced
• for medium soft to hard steels (250-600 HV)
• > 30% wear reduction
• ideal for manual cutting

Ø厚度内径粘结剂
95017540
250 mm1.5 mm32 mm树脂10 pcs
95017541
300 mm2.0 mm32 mm树脂10 pcs
95017542
350 mm2.5 mm32 mm树脂10 pcs
95017543
400 mm3.0 mm32 mm树脂10 pcs


Type FS-C, Yellow
• for medium hard steel (300-550HV), case hardened, nitrided steels

Ø厚度内径粘结剂
95012527
250 mm1.5 mm32 mm树脂10 pcs
95012534
300 mm2.2 mm32 mm树脂10 pcs
95012541
350 mm2.2 mm32 mm树脂10 pcs
95012548
400 mm3.0 mm32 mm树脂10 pcs
95012562
500 mm4.0 mm32 mm树脂5 pcs
95012569
600 mm4.5 mm32 mm树脂5 pcs


Type FS-D, Green
• for hard steels (400-700HV), annealed, carburised steels

Ø厚度内径粘结剂
95012526
250 mm1.5 mm32 mm树脂10 pcs
95012533
300 mm2.0 mm32 mm树脂10 pcs
95012540
350 mm2.5 mm32 mm树脂10 pcs
95012547
400 mm3.0 mm32 mm树脂10 pcs
95012561
500 mm4.0 mm32 mm树脂5 pcs
95012568
600 mm4.5 mm32 mm树脂5 pcs


Type FS-E, Blue
• for very hard steels (>650 HV), e.g., CrV, manganese steel

Ø厚度内径粘结剂
95012525
250 mm1.5 mm32 mm树脂10 pcs
95012532
300 mm2.0 mm32 mm树脂10 pcs
95012539
350 mm2.2 mm32 mm树脂10 pcs
95012546
400 mm3.0 mm32 mm树脂10 pcs
95012560
500 mm4.0 mm32 mm树脂5 pcs
95012567
600 mm4.5 mm40 mm树脂5 pcs


Type A, Brown
• universal wheel, soft and hard metals, superalloys (50-500 HV)

Ø厚度内径粘结剂
92002413
229 mm0.8 mm32 mmRubber10 pcs
92002599
254 mm1.0 mm32 mmRubber10 pcs
92002441
305 mm1.0 mm32 mmRubber10 pcs
92002436
356 mm1.6 mm32 mmRubber10 pcs
92002439
400 mm1.6 mm32 mmRubber10 pcs
92008537
500 mm2.4 mm32 mmRubber10 pcs
92004007
600 mm4.3 mm40 mmRubber10 pcs


Type B, Black
• for high-speed steels, heat-treated steels, non-corrosive steels (400-700 HV)

Ø厚度内径粘结剂
92002414
229 mm1.6 mm32 mmRubber10 pcs
92002600
254 mm1.6 mm32 mmRubber10 pcs
92002434
305 mm1.6 mm32 mmRubber10 pcs
92002437
356 mm2.4 mm32 mmRubber10 pcs
92002440
400 mm2.4 mm32 mmRubber10 pcs
92008874
500 mm3.0 mm32 mmRubber10 pcs


Premium diamond cut-off wheels
Bond: Bronze

• for ceramic materials

Ø厚度内径粘结剂粒度
92002452
250 mm1.2 mm32 mmBronzeD1811 pc
92002453
300 mm1.6 mm32 mmBronzeD1811 pc
95003433
350 mm1.6 mm32 mmBronzeD1811 pc
92008751
400 mm2.4 mm32 mmBronzeD181/2131 pc


• for composite materials (hard/soft combinations)

Ø厚度内径粘结剂粒度
95002102
250 mm1.3 mm32 mmBronzeD126/1511 pc
92004719
300 mm1.3 mm32 mmBronzeD126/1511 pc
92008619
350 mm1.3 mm32 mmBronzeD126/1511 pc
95006793
400 mm1.3 mm32 mmBronzeD126/1511 pc
其他尺寸需求，请致电垂询


Premium diamond cut-off wheels
Bond: Resin

• for hard metals, for materials with high hardness (>700 HV)

Ø厚度内径粘结剂粒度
92002451
250 mm1.2 mm32 mm树脂D126/1511 pc
92002454
300 mm1.6 mm32 mm树脂D1261 pc
95003049
350 mm1.6 mm32 mm树脂D1261 pc
95010131
400 mm1.6 mm32 mm树脂D1261 pc
其他尺寸需求，请致电垂询


优质CBN切割轮
粘结剂: 青铜

• for Nickel and Cobald based alloys

Ø厚度内径粘结剂
92002456
250 mm1.6 mm32 mmBronze1 pc
92002457
300 mm1.6 mm32 mmBronze1 pc
95005025
350 mm1.6 mm32 mmBronze1 pc
92004473
400 mm1.6 mm32 mmBronze1 pc


Aluminum oxide cut-off wheels
Bond: Resin

Type C
• universally applicable for materials of high and very high hardness (>600 HV), e.g., martensitic stainless steels, WC-Co, carbide

Ø厚度内径粘结剂
92001554
250 mm1.5 mm32 mm树脂10 pcs
92001558
300 mm2 mm32 mm树脂10 pcs
92001669
350 mm2 mm32 mm树脂10 pcs
92001783
400 mm3 mm32 mm树脂10 pcs


Type D
• universally applicable for medium material hardness and case-hardened steels (350-600 HV), e.g., tempered steel 42CrMo4, CuSn8

Ø厚度内径粘结剂
92001555
250 mm1.5 mm32 mm树脂10 pcs
92001559
300 mm2 mm32 mm树脂10 pcs
92001670
350 mm2 mm32 mm树脂10 pcs
92001784
400 mm3 mm32 mm树脂10 pcs


Type I
• ideal for cutting structural steel (e.g., S235JR, S355J2, C45) and cast materials (e.g., ductile iron, gray cast iron, cast steel) (60-350 HV)

Ø厚度内径粘结剂
92006066
250 mm1.6 mm32 mm树脂10 pcs
92005863
300 mm2 mm32 mm树脂10 pcs
92005862
350 mm2.5 mm32 mm树脂10 pcs
92008504
400 mm3 mm32 mm树脂10 pcs


ATM-CoolCut, environment- and user-friendly

混合比例 1:25 (4%) – 1:17 (6%) /折射计: 2.0%/°Bx
• for steel, cast iron, light and non-ferrous metal, glass and ceramics, composites
• free of oil, boron, nitride and formaldehyde
• optimized anti-corrosion protection and cutting properties
95004145
ATM-CoolCut, 浓缩型1 l
95004146
ATM-CoolCut, 浓缩型5 l
95004147
ATM-CoolCut, 浓缩型10 l


适用于聚合物和复合材料的防腐冷却液

混合比例: 1:66 (1.5%) - 1:33 (3%) / 折射计: 2.4%/°Bx
• optimized for polymers and composites
• free of nitride and oil
• also suitable for steels, non-ferrous metals, ceramics and glasses
95007864
浓缩型1 l


防腐蚀冷却液，标准

混合比例 1:35 / 折射计: 1.4%/°Bx
• for steel, cast iron, non-ferrous metal
95014280
浓缩型1 l
95014281
浓缩型5 l
95014282
浓缩型10 l


冷却液添加剂

ATM-CoolAdd CU

95008731
ATM-CoolAdd CU, additive for Cu/non-ferrous metal processing (0.05-0.2% dosage in ATM-CoolCut)
• reduces heavy metal ions concentration, protects surfaces, promotes filterability
• supports machine functionality1 l


消泡剂

95014584消泡剂,水基冷却液添加剂
水冷剂的混合浓度约为0.005-0.05% 清
95014583消泡剂,水基冷却液添加剂
水冷剂的混合浓度约为0.005-0.05% 清


ATM-PreClean

92006502ATM-PreClean, 清洁浓缩液/用于循环冷却系统和切割机的系统清洁剂


冷却剂维护保养附件

维护和测试套装

95007866
维护和测试防腐冷却液的套装(装有手持式折光仪，抽取样品的塑料杯，试纸和温度计的盒子)1 pc


维护和测试套装的附件

92005616
PH试纸100 pcs
92005613
硝酸盐试纸100 pcs
92005614
亚硝酸盐试纸100 pcs
95007865
水硬度试纸100 pcs


切割机维护保养所需附件

防腐护理喷雾

95016408
防腐护理喷雾，全方位无硅防腐油，适用于金属表面（例如夹具）400 ml


防雾护理喷雾

95008900
防雾护理喷雾（预防因冷却液溅射而导致视窗雾化）100 ml


切割轮附件

磨刀石

92002460
适用于金刚石切割轮，CBN切割轮和研磨杯轮的磨刀石1 pc


过滤袋

适用于Brillant 255 / Qcut 400 A (Brillant 265) / Brillant 270 /
Qcut 500 A (Brillant 275) / Brillant 280

尺寸网孔尺寸
95017301
过滤棉片490 x 290 x 190 mm60 µm5 pcs
95017302
过滤棉片490 x 290 x 190 mm100 µm5 pcs
95017303
过滤棉片490 x 290 x 190 mm800 µm5 pcs


for recirculation cooling system 45 Ltr.
(until year of construction 2012)

尺寸网孔尺寸
95017304
过滤棉片290 x 150 x 190 mm60 µm(until year of construction 2012)5 pcs
95017305
过滤棉片290 x 150 x 190 mm100 µm(until year of construction 2012)5 pcs
95017306
过滤棉片290 x 150 x 190 mm800 µm(until year of construction 2012)5 pcs


for recirculation cooling system 45 Ltr.
(from year of construction 2013)

尺寸网孔尺寸
95017307
过滤棉片250 x 200 x 155 mm60 µm(as of year of construction 2013)5 pcs
95017308
过滤棉片250 x 200 x 155 mm100 µm(as of year of construction 2013)5 pcs
95017309
过滤棉片250 x 200 x 155 mm800 µm(as of year of construction 2013)5 pcs


过滤篮



hanging basket made of stainless steel for the collection of the chip abrasion
• can be hooked into 45 liter recirculating cooling unit

尺寸(宽x高x深)
Z5800008
过滤篮140 x 80 x 200 mm1 pc


带式过滤系统所用滤网

适用于带式过滤系统 BFA 285

长 x 宽
92008780
滤网卷，粗孔，150μm100 m x 710 mm1 pc


适用于带式过滤系统 BFA 100/130

长 x 宽
95001696
滤网卷，粗孔，150μm100 m x 420 mm1 pc
其他尺寸需求请致电咨询


过滤棉片用于循环
冷却系统

适用于Qcut 800 A (Brillant 2000)

长 x 宽
95016233
过滤棉片940 x 720 mm5 pcs


适用于Qcut 600 A (Brillant 285)

长 x 宽
95016231
过滤棉片724 x 720 mm5 pcs


for recirculation cooling system 15 Ltr.

长 x 宽
95017314
过滤棉片235 x 148 mm5 pcs

Mounting Consumables



Hot mounting material

热镶嵌材料 EPO 黑色

95011990
EPO 黑色1 kg
95011991
EPO 黑色5 kg
95011992
EPO 黑色10 kg


热镶嵌材料 EPO-Max

95013811
EPO-MAX1 kg
95013812
EPO-MAX5 kg
95013813
EPO-MAX10 kg


热镶嵌材料 Duroplast 黑色

95011993
DUROPLAST 黑色1 kg
95011994
DUROPLAST 黑色5 kg
95011995
DUROPLAST 黑色10 kg


热镶嵌材料 Thermoplast

95011996
THERMOPLAST1 kg
95011997
THERMOPLAST5 kg
95011998
THERMOPLAST10 kg


热镶嵌材料 Bakelit 黑色

95011981
BAKELIT 黑色1 kg
95011982
BAKELIT 黑色5 kg
95011983
BAKELIT 黑色10 kg


热镶嵌材料 Bakelit 绿色

95011987
BAKELIT 绿色1 kg
95011988
BAKELIT 绿色5 kg
95011989
BAKELIT 绿色10 kg


热镶嵌材料 Bakelit 红色

95011984
BAKELIT 红色1 kg
95011985
BAKELIT 红色5 kg
95011986
BAKELIT 红色10 kg


Hot mounting accessories

92002660
硅胶膏，脱模剂90 ml
92002661
硅胶喷雾，脱模剂200 ml
92004441
铜刷，用于清洁热镶嵌设备1 pc
95017752
Flat brush, size 20, for cleaning the hot mounting press1 pc
95017753
Pointed angled tweezers, 160 mm, for positioning small samples1 pc
92002658
热镶嵌树脂粉末用漏斗1 pc
92002715
用于放置热镶嵌树脂的1L方瓶带螺旋盖容器1 pc
92002657
适合角度抛光的角度适配附件，10°100 pcs
92001716
用于盛取冷、热镶嵌树脂的量勺，13ml10 pcs


Clip for aligning thin samples in mould

92002662
钢100 pcs
92002663
塑料, 透明100 pcs
92002707
塑料, 黑色100 pcs
92002708
塑料, 红色100 pcs
92002709
塑料, 灰色100 pcs


Accessories for Hot Mounting presses

for Hot Mounting Press Qpress 40

95017793
Vacuum cleaner bags for Qpress 40 vacuum cleaner10 Pcs.
95017797
HEPA fine dust filter for Qpress 40 vacuum cleaner1 Pcs.
95016887
Descaling tablets3 Pcs.

for Hot Mounting Press Qpress 50

95014506
Filter mat, 230 x 230 mm1 Pcs.
95014507
Particle filter, 250 x 250 x 190 mm, seal on both sides1 Pcs.
95016887
Descaling tablets3 Pcs.


Cold mounting material

冷镶嵌材料 KEM 15 PLUS

主要成分: 甲基丙烯酸甲酯

­• blue, opaque
• 2-component system: powder + liquid (1.5:1 [Vol.-%])

95012019
1kg粉末，500ml液体，
40个搅拌杯，40根搅拌棒，2个量勺：13 ml 和20 ml1 Set
95011628
粉末1 kg
95011629
液体500 ml


冷镶嵌材料 KEM 20

主要成分: 甲基丙烯酸甲酯

• feasibility of transparent embeddings by means of pressure unit
• 2-component system: powder + liquid (2:1 [Vol.-%])

95013990
1 kg powder, 500 ml liquid,
40 mixing cups, 40 mixing sticks, 2 dosing spoons1 Set
95013939
粉末1 kg
95013940
粉末5 kg
95013941
粉末10 kg
95013942
液体500 ml
95013943
液体1 l


冷镶嵌材料 KEM 30

主要成分: 甲基丙烯酸甲酯

• green, semi-transparent
• 2-component system: powder + liquid (2:1 [Vol.-%])

95012021
1kg粉末，500ml液体，
40 40个搅拌杯，40根搅拌棒，2个量勺: 13 ml, 椭圆形1 pc
92004080
粉末1 kg
92004082
粉末5 kg
92004081
液体500 ml
92004083
液体1 l
92002540
液体2.5 l


冷镶嵌材料 KEM 35

主要成分: 甲基丙烯酸甲酯

­• light green, opaque
• 2-component system: powder + liquid (1.5:1 [Vol.-%])

95012022
1kg粉末，500ml液体，
40个搅拌杯，40根搅拌棒，2个量勺：13 ml 和20 ml1 Set
92002473
粉末1 kg
92002474
粉末5 kg
92002512
粉末10 kg
92002475
液体500 ml
92002476
液体1 l
92002477
液体2.5 l


冷镶嵌材料 Qprep SEM 5000

主要成分: 改性甲基丙烯酸甲酯

• copper-brown, free of blowholes by using a pressure device
• 2-component system: powder + liquid (20 g : 13 ml)

95004058
粉末1 kg
95004059
液体500 ml


冷镶嵌材料 KEM 60, 1 l

主要成分: Tetrahydrofurfuryl-2-methacrylate

• red, MMA-free
• 2-component system: powder + liquid (2:0.9 [weight-%])

95014004
1kg粉末，500ml液体，
40 40个搅拌杯，40根搅拌棒，2个量勺: 13 ml, 椭圆形1 Set
95013184
粉末1 kg
95013185
粉末5 kg
95013187
液体500 ml


冷镶嵌材料 Qpox 90

主要成分: 环氧树脂

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener (2:1 [weight-%])

95017315
500 ml 树脂, 250 ml 固化剂
40个搅拌杯, 40根搅拌棒1 Set
92002484
树脂500 ml
92002485
固化剂250 ml


冷镶嵌材料 Qpox 92

主要成分: 环氧树脂

• transparent, suitable for vacuum infiltration
• 2-components-system: resin + hardener (4:1 [weight-%])

95017316
1 l Resin, 250 ml Hardener
40 mixing cups, 40 mixing sticks1 Set
95016854
树脂1 l
95016855
固化剂250 ml


Cold mounting resin Qpox 94

主要成分: 环氧树脂

• transparent, suitable for vacuum infiltration
•2-components-system: resin + hardener (2:1 [weight-%])

950175381升树脂, 500 ml 固化剂
40个搅拌杯, 40根搅拌棒
95017496树脂
95017497固化剂

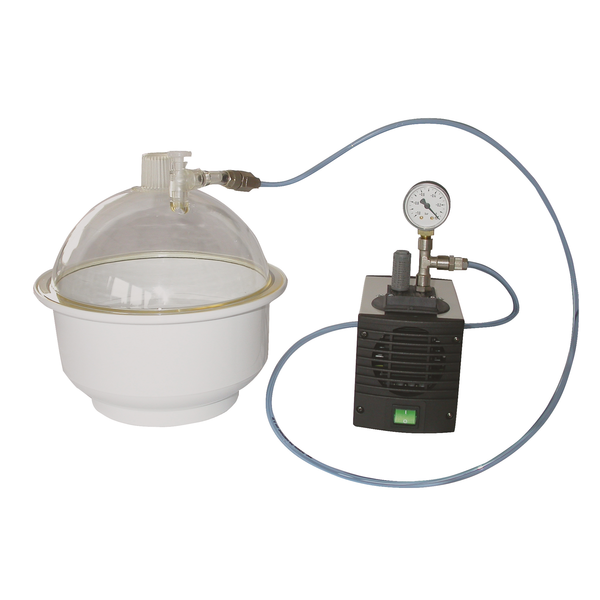

Vacuum infiltration and pressure device



真空浸渍单元

• for cold mounting, pouring and hardening using vacuum
• recommended for Epoxy resin Qpox 90 / Qpox 92 / Qpox 94

M6500001
真空浸渍单元，230V/50Hz，真空度0.8bar，
W 宽330x高270x深300mm
(包括含机械加液臂和真空泵的干燥器，可安放8个 φ50mm的硅胶冷镶嵌模具或者9个φ40mmPTFE模具的旋转底盘，10个搅拌杯）1 pc
Infiltration unit 110 V/60 Hz on request


Pressure equipment

95016569
Pressure Equipment Qprep Pressure, dimensions: B, 340 x W340 x H255 mm1 pc


UV mounting material



UV mounting material Qprep UV 50

主要成分: 改性甲基丙烯酸酯

• transparent
• 1-component system

95016840
多合一液体1 l


UV mounting resin Qprep UV 55

• transparent
• 1-component system

95017495多合一液体


用于UV光固化的冷镶嵌模具

Qmould Clear mounting moulds

• suitable for light curing
• with exchangeable bottom

95017575
Ø 40 mm / H 25 mm5 pcs
95017576
Ø 50 mm / H 25 mm5 pcs

Polypropylene round, without chamfer

• suitable for light curing
• with exchangeable bottom

95017317
Ø 25 mm / H 27 mm5 pcs
95017318
Ø 30 mm / H 27 mm5 pcsMountingUV mounting material
95017319
Ø 40 mm / H 27 mm (will be replaced by Qmould Clear 95017575)5 pcs


Cold & UV mounting accessories

92001715
搅拌杯，一次性，180ml100 pcs
92004360
硅胶搅拌杯，可重复使用1 pc
92001717
搅拌棒 (木制)100 pcs
92002657
适合角度抛光的角度适配附件，10°100 pcs
92001716
用于盛取冷、热镶嵌树脂的量勺，13ml10 pcs
92001779
用于盛取冷镶嵌树脂的量勺，20ml10 pcs
92001781
用于盛取冷镶嵌树脂的量勺，13ml10 pcs


Clip for aligning thin samples in mould

92002662
钢100 pcs
92002663
塑料, 透明100 pcs
92002707
塑料, 黑色100 pcs
92002708
塑料, 红色100 pcs
92002709
塑料, 灰色100 pcs


塑料镶嵌辅助支架

92002623
Ø 30 mm, for 4 samples, sample thickness <1 mm, blue100 pcs
92002625
Ø 30 mm, for 4 samples, sample thickness <2 mm, gray100 pcs
92002624
Ø 30 mm, for 3 samples, sample thickness <3 mm, white100 pcs


透明镶嵌辅助支架

95016787
Ø 35 mm, 用于4个样品，样品厚度< 1mm10 pcs
95016788
Ø 35 mm, 用于4个样品，样品厚度< 1mm50 pcs
95016789
Ø 35 mm, 用于4个样品，样品厚度< 1mm100 pcs

95016790
Ø 35 mm, 用于4个样品，样品厚度1-2mm10 pcs
95016791
Ø 35 mm, 用于4个样品，样品厚度1-2mm50 pcs
95016792
Ø 35 mm, 用于4个样品，样品厚度1-2mm100 pcs

95016793
Ø 35 mm, 用于3个样品，样品厚度2-3mm10 pcs
95016794
Ø 35 mm, 用于3个样品，样品厚度2-3mm50 pcs
95016795
Ø 35 mm, 用于3个样品，样品厚度2-3mm100 pcs

95016796
Ø 35 mm, 用于2个样品，样品厚度3-4mm10 pcs
95016797
Ø 35 mm, 用于2个样品，样品厚度3-4mm50 pcs
95016798
Ø 35 mm, 用于2个样品，样品厚度3-4mm100 pcs


冷镶嵌模具

Qmould Grey mounting moulds

• not suitable for light curing
• with exchangeable bottom

95017577Ø 40 mm / H 25 mm
95017578Ø 50 mm / H 25 mm

Qmould White mounting moulds

• not suitable for light curing
• with exchangeable bottom

95017579Ø 40 mm / H 25 mm
95017580Ø 50 mm / H 25 mm

硅胶，圆形，倒角

• not suitable for light curing

95017026
Ø 25 mm / H 23 mm5 pcs
95017027
Ø 30 mm / H 25 mm5 pcs
95017028
Ø 32 mm / H 25 mm5 pcs
95017029
Ø 38 mm / H 25 mm5 pcs
95017030
Ø 40 mm / H 30 mm5 pcs
95017031
Ø 50 mm / H 30 mm5 pcs


硅胶，方形，倒角

• not suitable for light curing

92002509
55 x 30 mm / H 22 mm1 pc
95017032
55 x 30 mm / H 22 mm5 pcs
92002510
70 x 40 mm / H 22 mm1 pc
95017033
70 x 40 mm / H 22 mm5 pcs


Polypropylene round, without chamfer

• suitable for light curing
• with exchangeable bottom

95017317
Ø 25 mm / H 27 mm5 pcs
95017318
Ø 30 mm / H 27 mm5 pcs
95017319
Ø 40 mm / H 27 mm (will be replaced by Qmould Clear 95017575)5 pcs


聚乙烯，圆形

• not suitable for light curing
• with exchangeable bottom

95017037
Ø 25 mm / H 25 mm5 pcs
95017038
Ø 30 mm / H 25 mm5 pcs
95017039
Ø 40 mm / H 25 mm (will be replaced by Qmould White 95017579)5 pcs
95017040
Ø 50 mm / H 25 mm (will be replaced by Qmould White 95017580)5 pcs


PTFE(聚四氟乙烯）圆形，倒角

• not suitable for light curing
• with exchangeable bottom

95017041Ø 25 mm / H 23 mm, 3 pcs
95017042Ø 30 mm / H 25 mm, 3 pcs
95017043Ø 32 mm / H 25 mm, 3 pcs
95017044Ø 38 mm / H 25 mm, 3 pcs
95017045Ø 40 mm / H 30 mm, 3 pcs
95017046Ø 50 mm / H 30 mm, 3 pcs
95017047Ø 70 mm / H 30 mm, 3 pcs

方案套装盒

Grinding Consumables

Grinding Consumables



Planar grinding stones

Qgrind XL预磨机用平面磨石

White corundum grinding stone
• for tool steel (hardened and not hardened), stainless steel, steel and cast iron

Grain Size外径内径Abor Size Ø
FEPA standard
95016741
100356 mm126 mm38 mm1 pc
95017565
150356 mm126 mm38 mm1 pc

SIC grinding stone
• for sintered materials (low- and unalloyed), aluminum, chilled cast iron, copper

Grain Size外径内径Abor Size Ø
FEPA standard
95016746
80356 mm126 mm38 mm1 pc
95016747
150356 mm126 mm38 mm1 pc


多点金刚石修刀棒，用于修整磨石

95016897
多点金刚石修刀棒1 pc


Planar grinding stones for Saphir 375

White corundum grinding stone
• for tool steel (hardened and not hardened), stainless steel, steel and cast iron
• glued on metal carrier plate

Grain Size外径内径Abor Size Ø
FEPA standard
95000180
100350 mm90 mm40 mm1 pc
95000210
150350 mm90 mm40 mm1 pc
95002034
180350 mm90 mm40 mm1 pc


SIC grinding stone
• for sintered materials (low- and unalloyed), aluminum, chilled cast iron, copper
• glued on metal carrier plate

Grain Size外径内径Abor Size Ø
FEPA standard
95002223
80350 mm90 mm40 mm1 pc
可根据需要提供内径120mm规格


多点金刚石修刀棒，用于修整磨石

92008759
多点金刚石修刀棒1 pc


金刚石研磨杯轮

• for glass fiber reinforced plastics and printed circuit boards
• with galvanic bond

Ø厚度高度内径粒度
95017782
150 mm8 mm21.7 mm12.7 mmD1201 pc
95017784
150 mm8 mm21.7 mm12.7 mmD2131 pc

• for glass, ceramics, rocks, hard metal
• with resin bond

Ø厚度高度内径粒度
95015123
150 mm8 mm21.5 mm12.7 mmD1511 pc
95015122
150 mm8 mm21.5 mm12.7 mmD641 pc
95017563
150 mm8 mm21.5 mm12.7 mmD1261 pc


磁性膜，自粘



Magnetic foil, normal adhesion
• to apply on working wheel

Ø厚度
92008528
200 mm1 mm1 pc
92005820
250 mm1 mm1 pc
92005822
300 mm1 mm1 pc


Magnetic foil, strong adhesion
• to apply on working wheel

Ø厚度
95016345
200 mm1 mm1 pc
95016346
250 mm1 mm1 pc
95012161
300 mm1 mm1 pc
95014137
350 mm1 mm1 pc


Magnetic foil, strongest adhesion
• to apply on working wheel-HR-• increased magnetic adhesion by higher material thickness

Ø厚度
95016300
250 mm2 mm1 pc
95016301
300 mm2 mm1 pc


GALAXY 金刚石磨盘
粘接剂: 树脂



for medium to hard materials
• planar grinding: grey (P80-P100)
• Fixation system: Magnetic foil

描述ØFixation
95005505
GALAXY 金刚石磨盘灰色200 mmAdhesion carrier/Magnet carrier1 pc
95004279
GALAXY 金刚石磨盘灰色250 mmAdhesion carrier/Magnet carrier1 pc
95004280
GALAXY 金刚石磨盘灰色300 mmAdhesion carrier/Magnet carrier1 pc
95013917
GALAXY 金刚石磨盘灰色350 mmAdhesion carrier/Magnet carrier1 pc
包含修刀石 No. 95006603


for medium to hard materials
• planar grinding: red (P100-P120)
• Fixation system: Magnetic foil

描述ØFixation

95005521
GALAXY 金刚石磨盘红色200 mmAdhesion carrier/Magnet carrier1 pc
95004310
GALAXY 金刚石磨盘红色250 mmAdhesion carrier/Magnet carrier1 pc
95004314
GALAXY 金刚石磨盘红色300 mmAdhesion carrier/Magnet carrier1 pc
95013918
GALAXY 金刚石磨盘红色350 mmAdhesion carrier/Magnet carrier1 pc
包含修刀石 No. 95006603


for medium to hard materials
• fine grinding: green (P180-P320)
• Fixation system: Magnetic foil

描述ØFixation

95005522
GALAXY 金刚石磨盘绿色200 mmAdhesion carrier/Magnet carrier1 pc
95004311
GALAXY 金刚石磨盘绿色250 mmAdhesion carrier/Magnet carrier1 pc
95004315
GALAXY 金刚石磨盘绿色300 mmAdhesion carrier/Magnet carrier1 pc
95013919
GALAXY 金刚石磨盘绿色350 mmAdhesion carrier/Magnet carrier1 pc
包含修刀石 No. 95006603


for medium to hard materials
• fine grinding: green (P400-P600)
• Fixation system: Magnetic foil

描述ØFixation

95005523
GALAXY 金刚石磨盘 蓝色200 mmAdhesion carrier/Magnet carrier1 pc
95004312
GALAXY 金刚石磨盘 蓝色250 mmAdhesion carrier/Magnet carrier1 pc
95004316
GALAXY 金刚石磨盘 蓝色300 mmAdhesion carrier/Magnet carrier1 pc
95013920
GALAXY 金刚石磨盘 蓝色350 mmAdhesion carrier/Magnet carrier1 pc
包含修刀石 No. 95006603


for medium to hard materials
• fine grinding: yellow (P800-P1000)
• Fixation system: Magnetic foil

描述ØFixation

95005524
GALAXY 金刚石磨盘黄色200 mmAdhesion carrier/Magnet carrier1 pc
95004313
GALAXY 金刚石磨盘黄色250 mmAdhesion carrier/Magnet carrier1 pc
95004317
GALAXY 金刚石磨盘黄色300 mmAdhesion carrier/Magnet carrier1 pc
95013921
GALAXY 金刚石磨盘黄色350 mmAdhesion carrier/Magnet carrier1 pc
包含修刀石 No. 95006603


POLARIS M 金刚石磨盘

for medium-hard materials
• incl. cleaning stone No. (95015077)
• Fixation system: Magnetic foil


250 mm Ø

描述粒度

95015016
POLARIS M 金刚石磨盘60 µm1 pc
95015017
POLARIS M 金刚石磨盘30 µm1 pc
95015018
POLARIS M 金刚石磨盘15 µm1 pc
95015019
POLARIS M 金刚石磨盘6 µm1 pc
95015020
POLARIS M 金刚石磨盘3 µm1 pc


300 mm Ø

描述粒度

95015041
POLARIS M 金刚石磨盘60 µm1 pc
95015042
POLARIS M 金刚石磨盘30 µm1 pc
95015043
POLARIS M 金刚石磨盘15 µm1 pc
95015044
POLARIS M 金刚石磨盘6 µm1 pc
95015045
POLARIS M 金刚石磨盘3 µm1 pc


POLARIS H 金刚石磨盘

for hard materials
• incl. cleaning stone No. (95015077)
• Fixation system: Magnetic foil


250 mm Ø

描述粒度

95015010
POLARIS H 金刚石磨盘125 µm1 pc
95015011
POLARIS H 金刚石磨盘60 µm1 pc
95015012
POLARIS H 金刚石磨盘30 µm1 pc
95015013
POLARIS H 金刚石磨盘15 µm1 pc
95015014
POLARIS H 金刚石磨盘6 µm1 pc
95015015
POLARIS H 金刚石磨盘3 µm1 pc


300 mm Ø

描述粒度

95015035
POLARIS H 金刚石磨盘125 µm1 pc
95015036
POLARIS H 金刚石磨盘60 µm1 pc
95015037
POLARIS H 金刚石磨盘30 µm1 pc
95015038
POLARIS H 金刚石磨盘15 µm1 pc
95015039
POLARIS H 金刚石磨盘6 µm1 pc
95015040
POLARIS H 金刚石磨盘3 µm1 pc


QUASAR 金刚石磨盘

for hard materials
• incl. dressing stone No. (95015076)
• Fixation system: Magnetic foil


250 mm Ø

描述粒度

95015006
QUASAR 金刚石磨盘252 µm1 pc
95015007
QUASAR 金刚石磨盘125 µm1 pc
95015008
QUASAR 金刚石磨盘91 µm1 pc
95015009
QUASAR 金刚石磨盘46 µm1 pc


300 mm Ø

描述粒度

95015031
QUASAR 金刚石磨盘252 µm1 pc
95015032
QUASAR 金刚石磨盘125 µm1 pc
95015033
QUASAR 金刚石磨盘91 µm1 pc
95015034
QUASAR 金刚石磨盘46 µm1 pc


350 mm Ø

描述粒度


VEGA 金刚石磨盘

for hard materials, for planar and pre-grinding
• Fixation system: Magnetic foil

200 mm Ø

描述粒度
95015001
VEGA 金刚石磨盘125 µm1 pc
95015002
VEGA 金刚石磨盘75 µm1 pc
95015003
VEGA 金刚石磨盘54 µm1 pc
95015004
VEGA 金刚石磨盘25 µm1 pc
95015005
VEGA 金刚石磨盘10 µm1 pc

250 mm Ø

描述粒度

95015026
VEGA 金刚石磨盘125 µm1 pc
95015027
VEGA 金刚石磨盘75 µm1 pc
95015028
VEGA 金刚石磨盘54 µm1 pc
95015029
VEGA 金刚石磨盘25 µm1 pc
95015030
VEGA 金刚石磨盘10 µm1 pc

300 mm Ø

描述粒度

95015051
VEGA 金刚石磨盘125 µm1 pc
95015052
VEGA 金刚石磨盘75 µm1 pc
95015053
VEGA 金刚石磨盘54 µm1 pc
95015054
VEGA 金刚石磨盘25 µm1 pc
95015055
VEGA 金刚石磨盘10 µm1 pc

350 mm Ø

描述粒度

95016235
VEGA 金刚石磨盘125 µm1 pc
95016236
VEGA 金刚石磨盘75 µm1 pc
95016237
VEGA 金刚石磨盘54 µm1 pc
95016238
VEGA 金刚石磨盘25 µm1 pc
95016239
VEGA 金刚石磨盘10 µm1 pc


Contero S 精磨盘

for soft to medium hard materials
• Fixation system: Magnetic foil
描述Ø
95013194
Contero S 精磨盘250 mm1 pc
95013196
Contero S 精磨盘300 mm1 pc


Contero H fine grinding discs

for medium to hard materials
• Fixation system: Magnetic foil
描述Ø
95017605
Contero H fine grinding disc250 mm1 pc
95017606
Contero H fine grinding disc300 mm1 pc


清洁刷

• for cleaning of ginding and fine grinding discs, , , , , 1 pc
描述
95016623尼龙刷


粘接转换盘，双面

Ø
95003607
250 mm1 pc
95003608
300 mm1 pc
第一次使用前请揭掉两面的保护膜


碳化硅研磨薄膜

• Fixation system: Adhesive carrier disc


250 mm Ø

描述Grain FEPA-Standard

92008557
SiC 研磨薄膜P120100 pcs
92008558
SiC 研磨薄膜P180100 pcs
95000899
SiC 研磨薄膜P240100 pcs
92006305
SiC 研磨薄膜P320100 pcs
92006304
SiC 研磨薄膜P600100 pcs
95000900
SiC 研磨薄膜P800100 pcs
92008559
SiC 研磨薄膜P1200100 pcs
92008639
SiC 研磨薄膜P2500100 pcs


300 mm Ø

描述Grain FEPA-Standard

92008561
SiC 研磨薄膜P120100 pcs
92008658
SiC 研磨薄膜P180100 pcs
95000902
SiC 研磨薄膜P240100 pcs
92006303
SiC 研磨薄膜P320100 pcs
92006302
SiC 研磨薄膜P600100 pcs
95000903
SiC 研磨薄膜P800100 pcs
92008562
SiC 研磨薄膜P1200100 pcs
92008621
SiC 研磨薄膜P2500100 pcs


碳化硅砂纸
带膜背衬

• Fixation system: Adhesive carrier disc


250 mm Ø

描述Grain FEPA-Standard

95011928
SiC 砂纸，带膜背衬P80100 pcs
95011929
SiC 砂纸，带膜背衬P120100 pcs
95011930
SiC 砂纸，带膜背衬P180100 pcs
95011931
SiC 砂纸，带膜背衬P240100 pcs
95011932
SiC 砂纸，带膜背衬P320100 pcs
95011933
SiC 砂纸，带膜背衬P400100 pcs
95011934
SiC 砂纸，带膜背衬P500100 pcs
95011935
SiC 砂纸，带膜背衬P600100 pcs
95011936
SiC 砂纸，带膜背衬P800100 pcs
95011937
SiC 砂纸，带膜背衬P1000100 pcs
95011938
SiC 砂纸，带膜背衬P1200100 pcs
95011939
SiC 砂纸，带膜背衬P2500100 pcs


300 mm Ø

描述Grain FEPA-Standard

95011943
SiC 砂纸，带膜背衬P80100 pcs
95011944
SiC 砂纸，带膜背衬P120100 pcs
95011945
SiC 砂纸，带膜背衬P180100 pcs
95011946
SiC 砂纸，带膜背衬P240100 pcs
95011947
SiC 砂纸，带膜背衬P320100 pcs
95011948
SiC 砂纸，带膜背衬P400100 pcs
95011949
SiC 砂纸，带膜背衬P500100 pcs
95011950
SiC 砂纸，带膜背衬P600100 pcs
95011951
SiC 砂纸，带膜背衬P800100 pcs
95011952
SiC 砂纸，带膜背衬P1000100 pcs
95011953
SiC 砂纸，带膜背衬P1200100 pcs
95011954
SiC 砂纸，带膜背衬P2500100 pcs

X-Tap

X-Tap (self-adhesive to stick on the working wheel)

Ø

GALAXY-X-Tap (for using with magnetic foil)

Ø
95017019
200 mm1 pc
95017020
250 mm1 pc
95017021
300 mm1 pc
95017022
350 mm1 pc


碳化硅砂纸，自粘

• Fixation system: X-Tap

200 mm Ø

描述Grain FEPA-Standard
92002544
SiC 砂纸P80100 pcs
92002545
SiC 砂纸P120100 pcs
92002546
SiC 砂纸P180100 pcs
92002547
SiC 砂纸P240100 pcs
92002548
SiC 砂纸P320100 pcs
92002549
SiC 砂纸P400100 pcs
92004516
SiC 砂纸P600100 pcs
92002550
SiC 砂纸P800100 pcs
92002551
SiC 砂纸P1000100 pcs
92002638
SiC 砂纸P1200100 pcs
92002761
SiC 砂纸2400*100 pcs
92004561
SiC 砂纸P2500100 pcs
92002762
SiC 砂纸4000*100 pcs
*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern


250 mm Ø

描述Grain FEPA-Standard

92001643
SiC 砂纸P80100 pcs
92001644
SiC 砂纸P120100 pcs
92001645
SiC 砂纸P180100 pcs
92004953
SiC 砂纸P240100 pcs
92001647
SiC 砂纸P320100 pcs
92001648
SiC 砂纸P400100 pcs
92001649
SiC 砂纸P600100 pcs
92001650
SiC 砂纸P800100 pcs
92001651
SiC 砂纸P1000100 pcs
92001652
SiC 砂纸P1200100 pcs
92002763
SiC 砂纸2400*100 pcs
92004563
SiC 砂纸P2500100 pcs
92002764
SiC 砂纸4000*100 pcs
*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern


300 mm Ø

描述Grain FEPA-Standard

92001654
SiC 砂纸P80100 pcs
92001655
SiC 砂纸P120100 pcs
92001657
SiC 砂纸P180100 pcs
92001658
SiC 砂纸P240100 pcs
92001659
SiC 砂纸P320100 pcs
92001660
SiC 砂纸P400100 pcs
92001661
SiC 砂纸P600100 pcs
92001662
SiC 砂纸P800100 pcs
92001663
SiC 砂纸P1000100 pcs
92001664
SiC 砂纸P1200100 pcs
92002765
SiC 砂纸2400*100 pcs
92004564
SiC 砂纸P2500100 pcs
92002766
SiC 砂纸4000*100 pcs
*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern


350 mm Ø

描述Grain FEPA-Standard

95017771
SiC 砂纸P80100 pcs
95017772
SiC 砂纸P120100 pcs
95017773
SiC 砂纸P180100 pcs
95017774
SiC 砂纸P240100 pcs
95017775
SiC 砂纸P320100 pcs
95017776
SiC 砂纸P400100 pcs
95017777
SiC 砂纸P600100 pcs
95017778
SiC 砂纸P800100 pcs
95017779
SiC 砂纸P1000100 pcs
95017780
SiC 砂纸P1200100 pcs
95017781
SiC 砂纸P2500100 pcs


氧化锆氧化铝砂纸, 自粘

• Fixation system: X-Tap


200 mm Ø

描述Grain FEPA-Standard
92002374
氧化锆氧化铝砂纸P6025 pcs
92002376
氧化锆氧化铝砂纸P18025 pcs


250 mm Ø

描述Grain FEPA-Standard

92002382
氧化锆氧化铝砂纸P6025 pcs
92002383
氧化锆氧化铝砂纸P12025 pcs


300 mm Ø

描述Grain FEPA-Standard

92002386
氧化锆氧化铝砂纸P6025 pcs
92002387
氧化锆氧化铝砂纸P12025 pcs


GALAXY Quick-Tap

GALAXY Quick-Tap (配合磁性膜使用)

Ø
95017587
200 mm1 pc
95017484
250 mm1 pc
95017485
300 mm1 pc


碳化硅光面砂纸
无背胶/膜背衬

• Fixation system: Quick-Tap or clamping ring


200 mm Ø

描述Grain FEPA-Standard
92001811
SiC 砂纸P80100 pcs
92001812
SiC 砂纸P120100 pcs
92001813
SiC 砂纸P180100 pcs
92001814
SiC 砂纸P240100 pcs
92001815
SiC 砂纸P320100 pcs
92001816
SiC 砂纸P400100 pcs
92001817
SiC 砂纸P500100 pcs
92001818
SiC 砂纸P600100 pcs
92001819
SiC 砂纸P800100 pcs
92001820
SiC 砂纸P1000100 pcs
92001821
SiC 砂纸P1200100 pcs
92002634
SiC 砂纸2400*100 pcs
92004557
SiC 砂纸P2500100 pcs
92002640
SiC 砂纸4000*100 pcs
*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern


230 mm Ø

描述Grain FEPA-Standard
92001568
SiC 砂纸P80100 pcs
92001569
SiC 砂纸P120100 pcs
92001570
SiC 砂纸P180100 pcs
92001571
SiC 砂纸P240100 pcs
92001572
SiC 砂纸P320100 pcs
92001573
SiC 砂纸P400100 pcs
92001574
SiC 砂纸P500100 pcs
92001575
SiC 砂纸P600100 pcs
92001576
SiC 砂纸P800100 pcs
92001577
SiC 砂纸P1000100 pcs
92001578
SiC 砂纸P1200100 pcs
92004558
SiC 砂纸P2500100 pcs
92001579
SiC 砂纸4000*100 pcs
*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern


250 mm Ø

描述Grain FEPA-Standard
92001581
SiC 砂纸P80100 pcs
92001582
SiC 砂纸P120100 pcs
92001583
SiC 砂纸P180100 pcs
92002369
SiC 砂纸P240100 pcs
92001585
SiC 砂纸P320100 pcs
92001586
SiC 砂纸P400100 pcs
92001587
SiC 砂纸P500100 pcs
92001588
SiC 砂纸P600100 pcs
92001589
SiC 砂纸P800100 pcs
92001590
SiC 砂纸P1000100 pcs
92001591
SiC 砂纸P1200100 pcs
92002636
SiC 砂纸2400*100 pcs
92004559
SiC 砂纸P2500100 pcs
92001592
SiC 砂纸4000*100 pcs
*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern


300 mm Ø

描述Grain FEPA-Standard

92001593
SiC 砂纸P60100 pcs
92001594
SiC 砂纸P80100 pcs
92001595
SiC 砂纸P120100 pcs
92001596
SiC 砂纸P180100 pcs
92001597
SiC 砂纸P240100 pcs
92001598
SiC 砂纸P320100 pcs
92001599
SiC 砂纸P400100 pcs
92001600
SiC 砂纸P500100 pcs
92001601
SiC 砂纸P600100 pcs
92001602
SiC 砂纸P800100 pcs
92001603
SiC 砂纸P1000100 pcs
92001604
SiC 砂纸P1200100 pcs
92002637
SiC 砂纸2400*100 pcs
92004560
SiC 砂纸P2500100 pcs
92002154
SiC 砂纸4000*100 pcs
*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern


Grinding papers for mobile grinder and polisher Qpol 30

刚玉砂纸，带钩环扣背衬

ØGrain FEPA-Standard
92004285
30 mmP60100 pcs
92004286
30 mmP180100 pcs
92004288
30 mmP240100 pcs
92004287
30 mmP320100 pcs


带背胶的碳化硅砂纸

ØGrain FEPA-Standard
92004498
30 mmP400100 pcs
92004499
30 mmP600100 pcs
92004631
30 mmP1000100 pcs
自粘抛光布: 请参见抛光章节


Grinding belts for Qgrind 100

氧化铝研磨砂带，防水

尺寸Grain FEPA-Standard
92002528
100 x 920 mmP805 pcs
92002529
100 x 920 mmP1205 pcs
92002530
100 x 920 mmP1805 pcs
92002531
100 x 920 mmP2405 pcs
92004505
100 x 920 mmP3205 pcs


碳化硅研磨，防水

尺寸Grain FEPA-Standard
92002664
100 x 915 mmP805 pcs
92002665
100 x 915 mmP1205 pcs
92002666
100 x 915 mmP1805 pcs
92002667
100 x 915 mmP2405 pcs
92004613
100 x 915 mmP3205 pcs
92002394
100 x 915 mmP4005 pcs

Polishing Consumables

Polishing Consumables



Dia-COMPLETE Poly,
二合一多晶金刚石悬浮液

金刚石悬浮液和润滑剂的组合产品
Grain Size
95011833
0.25 µm500 ml
95011839
0.25 µm1 l
95011845
0.25 µm2.5 l
95016023
0.25 µm5 l
95011834
1 µm500 ml
95011840
1 µm1 l
95011846
1 µm2.5 l
95015394
1 µm5 l
95011835
3 µm500 ml
95011841
3 µm1 l
95011847
3 µm2.5 l
95015395
3 µm5 l
95011836
6 µm500 ml
95011842
6 µm1 l
95011848
6 µm2.5 l
95015396
6 µm5 l
95011837
9 µm500 ml
95011843
9 µm1 l
95011849
9 µm2.5 l
95015397
9 µm5 l
95011844
15 µm1 l


Dia-COMPLETE Mono,
二合一单晶金刚石悬浮液

金刚石悬浮液和润滑剂的组合产品
Grain Size
95011815
1 µm500 ml
95011820
1 µm1 l
95011825
1 µm2.5 l
95015404
1 µm5 l
95011816
3 µm500 ml
95011821
3 µm1 l
95011826
3 µm2.5 l
95015405
3 µm5 l
95011817
6 µm500 ml
95011822
6 µm1 l
95011827
6 µm2.5 l
95015406
6 µm5 l
95011818
9 µm500 ml
95011823
9 µm1 l
95011828
9 µm2.5 l
95015407
9 µm5 l


多晶金刚石悬浮液

Grain Size
92002353
1 µm250 ml
95016017
1 µm500 ml
92004798
1 µm1 l
95002761
1 µm2.5 l
95014519
1 µm5 l
92002354
3 µm250 ml
95016018
3 µm500 ml
92004799
3 µm1 l
95002762
3 µm2.5 l
95014520
3 µm5 l
92002355
6 µm250 ml
95016019
6 µm500 ml
92004800
6 µm1 l
95002763
6 µm2.5 l
95014521
6 µm5 l
92002356
9 µm250 ml
95016020
9 µm500 ml
92004801
9 µm1 l
95002764
9 µm2.5 l
95014522
9 µm5 l
95005738
15 µm1 l


单晶金刚石悬浮液

Grain Size
92002346
1 µm250 ml
95016012
1 µm500 ml
92004791
1 µm1 l
95002755
1 µm2.5 l
95014514
1 µm5 l
92002347
3 µm250 ml
95016013
3 µm500 ml
92004792
3 µm1 l
95002756
3 µm2.5 l
95014515
3 µm5 l
92002348
6 µm250 ml
95016014
6 µm500 ml
92004793
6 µm1 l
95002757
6 µm2.5 l
95014516
6 µm5 l
92002349
9 µm250 ml
95016015
9 µm500 ml
92004794
9 µm1 l
95002758
9 µm2.5 l
95014517
9 µm5 l


金刚石悬浮液 (酒精基)
多晶

Grain Size
95003494
1 µm1 l
95003495
3 µm1 l
95003496
6 µm1 l
95003497
9 µm1 l


金刚石悬浮液 (酒精基)
单晶

Grain Size (µm)
95003490
1 µm1 l
95003491
3 µm1 l
95003492
6 µm1 l
95003493
9 µm1 l


金刚石悬浮液 (油基)
多晶

Grain Size
95002792
1 µm1 pc
95002793
3 µm1 pc
95002794
6 µm1 pc
95002795
9 µm1 pc


配件



喷嘴

• for diamond suspensions of all grain sizes
• for 250 ml, 500 ml and 1 L bottles
95016723喷嘴


用于悬浮液滴加的Qdoser ONE加液系统

Qdoser ONE基础模块
Z5631014Qdoser ONE支架
Z5631016Qdoser ONE立架


多晶金刚石喷雾

不含氟氯碳化物
Grain Size
95016025
1 µm200 ml
95016026
3 µm200 ml
95016027
6 µm200 ml
95016028
9 µm200 ml


多晶金刚石抛光膏

10g 注射器
Grain Size
92002340
1 µm10 g
92002341
3 µm10 g
92002342
6 µm10 g
92002343
9 µm10 g
92002344
15 µm10 g


单晶金刚石抛光膏

10g 注射器
Grain Size
92002333
1 µm10 g
92002316
3 µm10 g
92002335
6 µm10 g
92002336
9 µm10 g
92002337
15 µm10 g


金刚石润滑剂, additive for diamond suspension/paste

颜色特性
92005509
黄色- 水基 -生态友好1 l
92004925
黄色- 水基 -生态友好2.5 l
92005510
黄色- 水基 -生态友好5 l
95016174
黄色- 水基 -生态友好10 l
95000901
蓝色- 酒精基 -水敏样品制备1 l
95000911
蓝色- 酒精基 -水敏样品制备2,5 l
95001194
蓝色- 酒精基 -水敏样品制备5 l
95001759
红色- 油基 -水敏样品制备1 l
95001772
红色- 油基 -水敏样品制备2.5 l
95001784
红色- 油基 -水敏样品制备5 l


金刚石润滑浓缩液

• for manual dosing with diamond suspension
颜色, 特性
95016362蓝色, - 用于酒精基润滑剂 -
可与9等份酒精混合，调配10L润滑剂, , , 1 l


酒精

95004662
乙醇，99.9%变性醇1 l
95004663
乙醇，99.9%变性醇5 l
95004664
乙醇，99.9%变性醇10 l


精抛悬浮液

Fine polishing suspension (Al2O3)
• does not crystallize
•for ferrous materials, polymers, composites, PCB, rocks and minerals

描述ph值Grain Size
92002534
EposalpH≈8.00.06 µm1 l


Colloidal silica
• for polishing, also mixable with diluted etchant
•

描述ph值Grain Size
92002536
Eposil FpH≈9.50.1 µm1 l
95013858
Eposil Non DrypH≈9.50.05 µm1 l
95013958
Eposil Non DrypH≈9.50.05 µm10 l
92002541
Eposil MpH≈9.50.06 µm1 l


Colloidal silica
• for titanium, nickel, tin and its alloys

描述ph值Grain Size
95001206
Eposil M11pH≈11.00.06 µm1 l


Water-free fine polishing suspension
• e.g. for magnesium, zinc

描述ph值Grain Size
95005033
Etosil EpH≈7.00.06 µm1 l


氧化铝悬浮液，煅烧

浓缩型，可用3-5份去离子水稀释
描述Grain Size
92002533
氧化铝悬浮液0.3 µm1 l
92002532
氧化铝悬浮液0.6 µm1 l
92004950
氧化铝悬浮液1 µm1 l


磁性膜，自粘



Magnetic foil, normal adhesion
• to apply on working wheel

Ø厚度
92008528
200 mm1 mm1 pc
92005820
250 mm1 mm1 pc
92005822
300 mm1 mm1 pc


Magnetic foil, strong adhesion
• to apply on working wheel

Ø厚度
95016345
200 mm1 mm1 pc
95016346
250 mm1 mm1 pc
95012161
300 mm1 mm1 pc
95014137
350 mm1 mm1 pc


Magnetic foil, strongest adhesion
• to apply on working wheel-HR-• increased magnetic adhesion by higher material thickness

Ø厚度
95016300
250 mm2 mm1 pc
95016301
300 mm2 mm1 pc


带金属背底的GALAXY抛光布

GALAXY – ALPHA
• Suitable for pre-polishing
• Very hard, perforated chemical fiber cloth
• For ceramics, hard metal, steel, grey cast iron, aluminum
• High lifetime and stock removal
• For use with diamond grain size: 15/9 µm
• Fixation system: Magnetic foil

描述Ø
95001407
ALPHA200 mm5 pcs
95001408
ALPHA250 mm5 pcs
95001409
ALPHA300 mm5 pcs
95013994
ALPHA350 mm5 pcs


GALAXY – BETA
• Suitable for pre-polishing
• Hard synthetic cloth
• Materials with high hardness, steel, grey cast iron, hard metal, ceramics
• For use with diamond grain size: 15/9/6 µm
• Fixation system: Magnetic foil

描述ØFixation
95001410
BETA200 mm5 pcs
95001411
BETA250 mm5 pcs
95001412
BETA300 mm5 pcs
95013995
BETA350 mm5 pcs


GALAXY – DELTA
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum
• For use with diamond grain size: 9/6/3 µm
• Fixation system: Magnetic foil

描述Ø
95001413
DELTA200 mm5 pcs
95001414
DELTA250 mm5 pcs
95001415
DELTA300 mm5 pcs
95013996
DELTA350 mm5 pcs


GALAXY - GAMMA
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, coatings, plastics [CFK, GFK]
• For use with diamond grain size: 9/6/3 µm
• Fixation system: Magnetic foil

描述Ø
95017588
GAMMA200 mm5 pcs
95017589
GAMMA250 mm5 pcs
95017590
GAMMA300 mm5 pcs


GALAXY – PHI
• Suitable for pre-, intermediate-, and end polishing
• Medium hard chemical fiber cloth
• For iron, non – ferrous metals, minerals, ceramics, composite materials
• For use with diamond grain size: 9/6/3/1 µm
• Fixation system: Magnetic foil

描述Ø
95012740
PHI250 mm5 pcs
95012741
PHI300 mm5 pcs


GALAXY – SIGMA
• Suitable for intermediate and end polishing
• Soft wool cloth
• For all materials
• For use with diamond grain size: 6/3/1 µm
• Fixation system: Magnetic foil

描述Ø
95001416
SIGMA200 mm5 pcs
95001417
SIGMA250 mm5 pcs
95001418
SIGMA300 mm5 pcs
95013997
SIGMA350 mm5 pcs


GALAXY – ETA
• Suitable for end polishing
• Short flocked, medium hard synthetic cloth
• For all materials of medium and high hardness
• For use with diamond grain size: 3/1 µm
• Fixation system: Magnetic foil

描述Ø
95016833
ETA250 mm5 pcs
95016834
ETA300 mm5 pcs


GALAXY – IOTA
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Long flocked, soft synthetic cloth
• For all materials, especially hard materials
• For use with diamond grain size: 3/1 μm
• Suitable for oxide suspensions
• Fixation system: Magnetic foil

描述Ø
95001419
IOTA200 mm5 pcs
95001420
IOTA250 mm5 pcs
95001421
IOTA300 mm5 pcs
95013998
IOTA350 mm5 pcs

GALAXY – ZETA
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Short flocked, soft synthetic cloth
• For all materials
• For use with diamond grain size: 3/1 µm
•, Suitable for oxide suspensions as well as alumina
• Fixation system: Magnetic foil

描述Ø
95005776
ZETA200 mm5 pcs
95005777
ZETA250 mm5 pcs
95005778
ZETA300 mm5 pcs
95013999
ZETA350 mm5 pcs


GALAXY – OMEGA
• Suitable for fine polishing with fine polishing suspension
• Soft synthetic cloth (chemical resistant)
•, For all materials
•, Suitable for oxide suspensions
• Fixation system: Magnetic foil

描述Ø
95005779
OMEGA200 mm5 pcs
95005780
OMEGA250 mm5 pcs
95005781
OMEGA300 mm5 pcs


GALAXY – LAMBDA-HR-• Suitable for fine polishing with fine polishing suspension-HR-• Brushed, structured synthetic cloth (chemical resistant)-HR-• For all materials-HR-•, Suitable for oxide suspensions as well as alumina-HR-• Fixation system: Magnetic foil

描述Ø
95005782
LAMBDA200 mm5 pcs
95005783
LAMBDA250 mm5 pcs
95005784
LAMBDA300 mm5 pcs

X-Tap

X-Tap (self-adhesive to stick on the working wheel)

Ø

GALAXY-X-Tap (for using with magnetic foil)

Ø
95017019
200 mm1 pc
95017020
250 mm1 pc
95017021
300 mm1 pc
95017022
350 mm1 pc


抛光布, 自粘

ALPHA – Polishing cloth
• Suitable for pre-polishing
• Very hard, perforated chemical fiber cloth
• For ceramics, hard metal, steel, grey cast iron, aluminum
• High lifetime and stock removal
• For use with diamond grain size: 15/9 µm
• Fixation system: X-Tap

描述Ø
92002564
ALPHA250 mm5 pcs
92002573
ALPHA300 mm5 pcs


BETA – Polishing cloth-HR-• Suitable for pre-polishing-HR-• Hard synthetic cloth-HR-• Materials with high hardness, steel, grey cast iron, hard metal, ceramics-HR-• For use with diamond grain size: 15/9/6 µm-HR-• Fixation system: X-Tap

描述ØFixation
95006572
BETA250 mm5 pcs
95006573
BETA300 mm5 pcs


DELTA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum
• For use with diamond grain size: 9/6/3 µm
• Fixation system: X-Tap

描述Ø
92008802
DELTA250 mm5 pcs
92008803
DELTA300 mm5 pcs


GAMMA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, coatings, plastics [CFK, GFK],
• For use with diamond grain size: 9/6/3 µm
• Fixation system: X-Tap

描述Ø
92002558
GAMMA200 mm5 pcs
92002567
GAMMA250 mm5 pcs
92002576
GAMMA300 mm5 pcs


SIGMA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Soft wool cloth
• For all materials
• For use with diamond grain size: 6/3/1 µm
• Fixation system: X-Tap

描述Ø
92008810
SIGMA200 mm5 pcs
92008811
SIGMA250 mm5 pcs
92008812
SIGMA300 mm5 pcs


IOTA – Polishing cloth
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Long flocked, soft synthetic cloth
• for all materials, especially hard materials
• For use with diamond grain size: 3/1 µm
• Suitable for oxide suspensions
• Fixation system: X-Tap

描述Ø
95002393
IOTA200 mm5 pcs
95002394
IOTA250 mm5 pcs
95002395
IOTA300 mm5 pcs


ZETA – Polishing cloth
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Short flocked, soft synthetic cloth
• for all materials
• For use with diamond grain size: 3/1 µm
• Suitable for oxide suspensions as well as alumina
• Fixation system: X-Tap

描述Ø
92005681
ZETA200 mm5 pcs
92005683
ZETA250 mm5 pcs
92005684
ZETA300 mm5 pcs


KAPPA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Soft polishing felt
• For all materials
• Suitable for alumina
• Fixation system: X-Tap

描述Ø
92002572
KAPPA250 mm5 pcs
92002581
KAPPA300 mm5 pcs


OMEGA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Soft synthetic cloth (chemical resistant)
• For all materials
• Suitable for oxide suspensions
• Fixation system: X-Tap

描述Ø
92002562
OMEGA200 mm5 pcs
92002571
OMEGA250 mm5 pcs
92002580
OMEGA300 mm5 pcs


介质承载盘

• for grinding and polishing robot Qpol 250 BOT (SAPHIR X-Change)
Ø
95005867
250 mm1 pc


过滤袋



Filter inserts for settling tank
(until year of construction 2012)

尺寸网孔尺寸
95017310
过滤棉片290 x 150 x 190 mm40 µm
95017311
过滤棉片290 x 150 x 190 mm60 µm


Filter inserts for settling tank
(from year of construction 2013)

尺寸网孔尺寸
95017312
过滤棉片250 x 200 x 155 mm60 µm
95017313
过滤棉片250 x 200 x 155 mm100 µm


Filter cartridges for Qpol 300 BOT



Filter cartridge for circulation filter system of the ultrasonic cleaning tank

Filter fineness高度Inner-ØOuter-Ø
92007119
5 µm248 mm28 mm64 mm1 pc
92007120
150 µm248 mm28 mm62 mm1 pc

Polishing Consumables

Etching / Analyzing Consumables



Electrolytes

(consisting of two
components; total volume 1 litre), 描述

Electrolyte for stainless steel, aluminum, aluminum alloys and special materials
• for electrolytic etching/polishing

92002680
K1 - 组分A，和组分B混合成体积1升的溶液1 pc
92002980
K1 - 组分B（高氯酸），和组分A混合成1升体积的溶液1 pc


适用于钛的电解液

92003011
T1 - 组分A，和组分B混合成体积1升的溶液1 pc
92003012
T1 - 组分B（高氯酸），和组分A混合成1升体积的溶液1 pc


适用于灰铸铁的电解液

92003014
F1 - 组分A，和组分B混合成体积1升的溶液1 pc
92003015
F1 - 组分B（高氯酸），和组分A混合成1升体积的溶液1 pc
• Shipping of hazardous materials will be charged extra
• Download of Safety Data Sheets at www.qatm.com


Qetch 100M (Kristall 650)的附件

带有螺旋盖的电解液瓶

95003955
1升体积1 pc


Qetch 100M（Kristall 650)附件套装-手提箱

Z6201001
手提箱（单独-货号）:
• 5pcsV型环（货号：95003606）
• 1pc膨胀圈，约150mm（货号：06201052）
• 1pc 膨胀圈的柔性终端（货号：06201051）
• 1pc 截管器（货号：95004030）
• 10pcs滤板φ40.5mm（货号：95003985）
• 1pc 海豚夹（货号：82000374）1 pc


浸蚀剂

95014346
VisiPro-I腐蚀剂，用于显示奥氏体晶界（淬火或回火低合金调质钢和表面硬化钢）500 ml
95014347
VisiPro-I腐蚀剂，用于显示奥氏体晶界（淬火或回火低合金调质钢和表面硬化钢）1 l
95017581
VisiPro-I 快速腐蚀剂，用于显示调质非合金钢和低合金钢、轴承钢(比如102Cr6)的前奥氏体晶界。腐蚀时间：约2到6分钟，取决于材料。500 ml
95017582
VisiPro-I 快速腐蚀剂，用于显示调质非合金钢和低合金钢、轴承钢(比如102Cr6)的前奥氏体晶界。腐蚀时间：约2到6分钟，取决于材料。1 l
95014348
VisiPro-II 腐蚀剂，用于显示奥氏体晶界（调质低合金钢、调质表面硬化钢和耐磨轴承钢）500 ml
95014349
VisiPro-II 腐蚀剂，用于显示奥氏体晶界（调质低合金钢、调质表面硬化钢和耐磨轴承钢）1 l
95006393
Barker试剂（显示铝晶界）1 l
95000508
铜A，氯化物版本（用于铜、铜合金、黄铜和青铜）500 ml
92002602
Adler腐蚀剂（适用于钢，焊缝，宏观浸蚀）1 kg
92002603
苦味酸酒精，5%苦味酸酒精溶液（适用于钢，马氏体）1 l
92006878
硝酸酒精，5%硝酸酒精溶液（适用于非合金钢和低合金钢）1 l
92002597
硝酸酒精，3%硝酸酒精溶液（适用于非合金钢和低合金钢）1 l
92002596
硝酸酒精，1%硝酸酒精溶液（适用于非合金钢和低合金钢）1 l
92002605
V2A etchant (for austenitic steels), applied at approximately 60°C, contains the additive Dr. Vogel's economy etchant, which acts as an inhibitor and optimizes etching performance1 kg
92002678
氢氧化钠溶液（适用于铝合金）1 kg
92004240
Oberhoffer腐蚀剂（适用于钢，偏析，变形流线，宏观/微观浸蚀）1 kg
92004492
Kroll腐蚀剂（适用于铝合金，钛）1 kg
92004222
CU2腐蚀液（铜、含硫化物和氧化物夹杂物的铜）1 kg
92002750
苦味酸钠（检测钢中的渗碳体）1 kg
95002313
Kalling1腐蚀剂（适用于马氏体不锈钢）1 l
95002347
Kalling2腐蚀剂（适用于镍，镍合金，不锈钢，镍-铜合金）1 kg
95002434
彩色腐蚀，根据KlemmI(适用于低碳钢)，储存溶液1 l
95002390
用于KlemmI的重亚硫酸钾20 g
95002435
彩色浸蚀，根据KlemmII(铜，焊点)，储存溶液1 l
95002391
用于KlemmII的重亚硫酸钾50 g
95002436
Bechet-Beaujard浸蚀剂,原始奥氏体晶界1 l
95002408
Murakami浸蚀剂（适用于硬质金属，钼/钼合金，铬合金，钨及钨合金）1 kg

Details在此找到安全数据表


用过的浸蚀剂的储存瓶

95017528
用过的浸蚀剂的储存瓶1 pc


浸蚀附件

腐蚀器皿, DDURAN® 玻璃带盖，耐热

92002629
Ø 60/H 40 mm1 pc
92002628
Ø 80/H 50 mm1 pc
92002430
Ø 100/H 60 mm1 pc
92002626
Ø 150/H 80 mm1 pc


Etching bowl, polyethylene (PE),

95012078
Ø 90/H 40mm1 pc
95012079
Ø 110/H 55mm1 pc
95012080
Ø 110/H 75mm1 pc


腐蚀器皿，聚丙烯（PP），带螺旋接口

95012081
Ø 60/H 60mm1 pc
95012082
Ø 115/H 70mm1 pc


坩埚钳

92002431
不锈钢坩埚钳1 pc
95008097
带隔热柄的不锈钢坩埚钳1 pc


实验室配件及设备

安全面罩，符合DIN EN 16613-S
全方位保护面部，无限视野、耐酸碱、坚固耐用的塑料材质，防碎，防刮

95002951
安全面罩, 符合DIN EN 16613-S标准1 pc


实验室防护围裙，PVC材质，脖颈和身体两侧有系带，边缘干净无线头

95004848
实验室防护围裙, 900 x 1100 x 0.5 mm1 pc


乳胶手套（单一用途），符合EN 420，EN 374标准

95008893
M号乳胶手套，符合EN420，EN374标准100 pcs
95007658
L号乳胶手套，符合EN420，EN374标准100 pcs
95008208
XL号乳胶手套，符合EN420，EN374标准90 pcs


黑色防护手套, 符合EN 388, EN 374标准

95003208
黑色防护手套, 符合EN 388, EN 374标准，L号
- 耐水溶性化学品，非常耐用1 pair


安全护目镜，符合EN 166标准，长度可调

92005963
安全护目镜，符合EN1661 pc


镶嵌粘接剂

92002779
Mounting adhesive 100g, excellent bonding for metals and ceramics1 pc


脱脂棉

92002630
脱脂棉200克


样品清洁布

92008773
样品清洁布100 pcs


样品保护液

92004428
样品保护液，喷雾（保护样品)300 ml


瓶子

92008770
Spray bottle, 250ml1 pc
92002432
喷雾瓶500ml1 pc
92004491
窄颈洗瓶500ml1 pc


量筒

92004302
量筒50ml1 pc
92004303
量筒100ml1 pc


Specimen drying unit
• Hot air blower with push button
• Frame made of HPL solid material
• Stainless steel tray made of perforated sheet for placing specimens
• With underlying water protection mat
• Dimensions W x H x D: 350 x 670 x 370 mm

A5810355
桌式样品烘干机1 pc
A5810419
样品烘干机，带墙壁支架1 pc


ULTRASONIC CLEANING DEVICES



Ultrasonic cleaning device 100
Interior approx. W x H x D: 240 x 140 x 100 mm, capacity: 3 liters
HF power: 80 W, connection: 230 V/50 Hz (1 Ph/N/PE)

92002613
US 100, rotary knob operation1 pc
92008794
DT 100, digital push-button operation1 pc
92002609
Perforated hanging basket1 pc
92002632
Lid VA1 pc


Ultrasonic cleaning device 106
Internal diameter/height: 240/130 mm, capacity: 5.6 liters
HF power: 120 W, connection: 230 V/50 Hz (1 Ph/N/PE)

92005839
US 106, rotary knob operation1 pc
95001285
DT 106, digital push-button operation1 pc
92005840
Perforated hanging basket1 pc
92005841
Lid VA1 pc
Additional ultrasonic cleaning devices available upon request


Cleaning concentrate, alkaline
• for universal use and intensive cleaning
• use 1 – 5%, pH 10 at 2%, removes oils, fats, silicon oil residues, pigments, ink and proteins

92002614
Tickopur R 331 l


Cleaning aids
• individually applicable for intensive cleaning

95004662
乙醇，99.9%变性醇1 l
95004663
乙醇，99.9%变性醇5 l
95004664
乙醇，99.9%变性醇10 l
92004510
丙酮，化学纯，用于样品表面脱脂1 l


通风橱面板清洁

Z7510002
Pane cleaning set in suitcase
• Pane wiper magnet
• 2x 30 pcs. cleaning cloths1 pc


Electric engraving device

95006339
Electric engraving device for marking metal, glass, and plastic with 6 different tips1 pc
Z5690032
Replacement tip set1 pc


复型套装

复型系统用于微观结构的无损检测
将两种成份的化合物在样品表面快速凝固；
凝固了的覆膜可以轻松揭掉并直接进行分析
92006498
两组分化合物2x50 ml
92006609
加料枪1 pc
92008692
混合管48 pcs


Assembly cleaner
• for sample preparation, for replication set, in spray can

92004376
装备清洁喷雾500 ml


精密复型材料

Replica system
• for surface structures (metallic or mineral),-HR-for surface roughness inspection (R, Ra)
95001664
2-components compound standard900 ml

Analyzing Consumables



显微镜附件

配套附件

92004109
橡皮泥1 kg
92002943
金属载玻片, 76x26 mm5 pcs
92004243
玻璃载玻片, 32x24 mm100 pcs
92004256
玻璃载玻片, 40x24 mm100 pcs
M1321000
试样压平器
•使样品表面平行于载玻片
•操作简便省力
•结构紧凑，坚固，耐用
•由阳极化处理的铝合金制成1 pc


样品储存

成品样品的储存系统

92002898
盘式柜 320 x 320 mm, 用于存放φ300盘
带6个抽屉1 pc
92002717
盘式柜, 290 x 290 mm, 用于存放Ø 200和250 mm盘
带5个抽屉1 pc
95012025
样品干燥柜 310 x 525 x 375 mm1 pc
95012026
干燥柜架1 pc
92002868
干燥剂，用于干燥皿1 pc
A7500417
样品盒，320x320x58mm，可储存56个φ25-32mm样品1 pc
A7500418
样品盒，320x320x58mm，可储存25个φ38-50mm样品1 kg


文献

Expert Guide Materialography/Metallography
QATM Academy

95016622
材相/金相专家指南1 pc

金相学,
作者: Hermann Schumann

92005114
金相学1 pc

Metallographisches, keramographisches und plastographisches Ätzen,
Autor: Günter Petzow

92004667
Metallographisches, keramographisches und plastographisches Ätzen1 pc

Metallographische Anleitung zum Farbätzen nach dem Tauchverfahren,
Autoren: E. Weck, E. Leistner

95001841
Nichteisenmetalle, Hartmetalle und Eisenwerkstoffe, Nickel-Basis- und Kobalt-Basis-Legierungen1 pc

Hardness Testing

Hardness Testing



布氏标准硬度块
(DIN EN ISO 6506-3, ASTM E10)

Test procedureTest method材质HardnessDimensions (mm)


HBW 10 / 500

HB1005080A
布氏HBW 10/500铝HW approx. 80150x100x16


HBW 10 / 1000

HB1010080A
布氏HBW 10/1000铝HW approx. 80150x100x16
HB1010110A
布氏HBW 10/1000铝HW approx. 110150x100x16
HB1010130A
布氏HBW 10/1000铝HW approx. 130150x100x16
HB1010170A
布氏HBW 10/1000铝HW approx. 170150x100x16
HB1010200A
布氏HBW 10/1000钢HW approx. 200150x100x16


HBW 10 / 1500

HB1015080A
布氏HBW 10/1500铝HW approx. 80150x100x16
HB1015110A
布氏HBW 10/1500铝HW approx. 110150x100x16
HB1015130A
布氏HBW 10/1500铝HW approx. 130150x100x16
HB1015170A
布氏HBW 10/1500铝HW approx. 170150x100x16
HB1015200A
布氏HBW 10/1500钢HW approx. 200150x100x16
HB1015250A
布氏HBW 10/1500钢HW approx. 250150x100x16
HB1015300A
布氏HBW 10/1500钢HW approx. 300150x100x16


HBW 10 / 3000

HB1030110A
布氏HBW 10/3000铝HW approx. 110150x100x16
HB1030130A
布氏HBW 10/3000铝HW approx. 130150x100x16
HB1030170A
布氏HBW 10/3000铝HW approx. 170150x100x16
HB1030200A
布氏HBW 10/3000钢HW approx. 200150x100x16
HB1030250A
布氏HBW 10/3000钢HW approx. 250150x100x16
HB1030300A
布氏HBW 10/3000钢HW approx. 300150x100x16
HB1030350A
布氏HBW 10/3000钢HW approx. 350150x100x16
HB1030400A
布氏HBW 10/3000钢HW approx. 400150x100x16
HB1030450A
布氏HBW 10/3000钢HW approx. 450150x100x16
HB1030500A
布氏HBW 10/3000钢HW approx. 500150x100x16
HB1030550A
布氏HBW 10/3000钢HW approx. 550150x100x16
HB1030600A
布氏HBW 10/3000钢HW approx. 600150x100x16
HB1030650A
布氏HBW 10/3000钢HW approx. 650150x100x16


HBW 5 / 125

HB0505080A
布氏HBW 5/125铝HW approx. 80150x100x16


布氏标准硬度块
(DIN EN ISO 6506-3, ASTM E10)

HBW材质HW Dimensions (mm)


HBW 5 / 250

HB0510080A布氏, HBW 5/250, 铝, HW approx. 80, 150x100x16
HB0510110A布氏, HBW 5/250, 铝, HW approx. 110, 150x100x16
HB0510130A布氏, HBW 5/250, 铝, HW approx. 130, 150x100x16
HB0510170A布氏, HBW 5/250, 铝, HW approx. 170, 150x100x16
HB0510200A布氏, HBW 5/250, 钢, HW approx. 200, 150x100x16


HBW 5 / 750

HB0530110A布氏, HBW 5/750, 铝, HW approx. 110, 150x100x16
HB0530130A布氏, HBW 5/750, 铝, HW approx. 130, 150x100x16
HB0530170A布氏, HBW 5/750, 铝, HW approx. 170, 150x100x16
HB0530200A布氏, HBW 5/750, 钢, HW approx. 200, 150x100x16
HB0530250A布氏, HBW 5/750, 钢, HW approx. 250, 150x100x16
HB0530300A布氏, HBW 5/750, 钢, HW approx. 300, 150x100x16
HB0530350A布氏, HBW 5/750, 钢, HW approx. 350, 150x100x16
HB0530400A布氏, HBW 5/750, 钢, HW approx. 400, 150x100x16
HB0530450A布氏, HBW 5/750, 钢, HW approx. 450, 150x100x16
HB0530500A布氏, HBW 5/750, 钢, HW approx. 500, 150x100x16
HB0530550A布氏, HBW 5/750, 钢, HW approx. 550, 150x100x16
HB0530600A布氏, HBW 5/750, 钢, HW approx. 600, 150x100x16
HB0530650A布氏, HBW 5/750, 钢, HW approx. 650, 150x100x16


HBW 2.5 / 31.25

HB2505080C
布氏HBW 2.5/31.25铝HW approx. 8060x60x16


HBW 2.5 / 62.5

HB2510080C
布氏HBW 2.5/62.5铝HW approx. 8060x60x16
HB2510110C
布氏HBW 2.5/62.5铝HW approx. 11060x60x16
HB2510130C
布氏HBW 2.5/62.5铝HW approx. 13060x60x16
HB2510170C
布氏HBW 2.5/62.5铝HW approx. 17060x60x16
HB2510200C
布氏HBW 2.5/62.5钢HW approx. 20060x60x16


HBW 2.5 / 187.5

HB2530110C
布氏HBW 2.5/187.5铝HW approx. 11060x60x16
HB2530130C
布氏HBW 2.5/187.5铝HW approx. 13060x60x16
HB2530170C
布氏HBW 2.5/187.5铝HW approx. 17060x60x16
HB2530200C
布氏HBW 2.5/187.5钢HW approx. 20060x60x16
HB2530250C
布氏HBW 2.5/187.5钢HW approx. 25060x60x16
HB2530300C
布氏HBW 2.5/187.5钢HW approx. 30060x60x16
HB2530350C
布氏HBW 2.5/187.5钢HW approx. 35060x60x16
HB2530400C
布氏HBW 2.5/187.5钢HW approx. 40060x60x16
HB2530450C
布氏HBW 2.5/187.5钢HW approx. 45060x60x16
HB2530500C
布氏HBW 2.5/187.5钢HW approx. 50060x60x16
HB2530550C
布氏HBW 2.5/187.5钢HW approx. 55060x60x16
HB2530600C
布氏HBW 2.5/187.5钢HW approx. 60060x60x16
HB2530650C
布氏HBW 2.5/187.5钢HW approx. 65060x60x16


HBW 1 / 5

HB0105080C
布氏HBW 1/5铝HW approx. 8060x60x16


HBW 1 / 10

HB0110080C
布氏HBW 1/10铝HW approx. 8060x60x16
HB0110110C
布氏HBW 1/10铝HW approx. 11060x60x16
HB0110130C
布氏HBW 1/10铝HW approx. 13060x60x16
HB0110170C
布氏HBW 1/10铝HW approx. 17060x60x16
HB0110200C
布氏HBW 1/10钢HW approx. 20060x60x16


HBW 1 / 30

HB0130110C
布氏HBW 1/30铝HW approx. 11060x60x16
HB0130130C
布氏HBW 1/30铝HW approx. 13060x60x16
HB0130170C
布氏HBW 1/30铝HW approx. 17060x60x16
HB0130200C
布氏HBW 1/30钢HW approx. 20060x60x16
HB0130250C
布氏HBW 1/30钢HW approx. 25060x60x16
HB0130300C
布氏HBW 1/30钢HW approx. 30060x60x16
HB0130350C
布氏HBW 1/30钢HW approx. 35060x60x16
HB0130400C
布氏HBW 1/30钢HW approx. 40060x60x16
HB0130450C
布氏HBW 1/30钢HW approx. 45060x60x16
HB0130500C
布氏HBW 1/30钢HW approx. 50060x60x16
HB0130550C
布氏HBW 1/30钢HW approx. 55060x60x16
HB0130600C
布氏HBW 1/30钢HW approx. 60060x60x16
HB0130650C
布氏HBW 1/30钢HW approx. 65060x60x16


努氏标准硬度块
(DIN EN ISO 4545-3, ASTM E92)

Test procedureTest method材质HardnessDimensions (mm)


HK 0.01

HKG010200E
努氏HK 0.01钢HW approx. 20030x30x6
HKG010250E
努氏HK 0.01钢HW approx. 25030x30x6
HKG010300E
努氏HK 0.01钢HW approx. 30030x30x6
HKG010350E
努氏HK 0.01钢HW approx. 35030x30x6


HK 0.015

HKG015200E
努氏HK 0.015钢HW approx. 20030x30x6
HKG015250E
努氏HK 0.015钢HW approx. 25030x30x6
HKG015300E
努氏HK 0.015钢HW approx. 30030x30x6
HKG015350E
努氏HK 0.015钢HW approx. 35030x30x6
HKG015400E
努氏HK 0.015钢HW approx. 40030x30x6
HKG015450E
努氏HK 0.015钢HW approx. 45030x30x6
HKG015500E
努氏HK 0.015钢HW approx. 50030x30x6


HK 0.02

HKG020200E
努氏HK 0.02钢HW approx. 20030x30x6
HKG020250E
努氏HK 0.02钢HW approx. 25030x30x6
HKG020300E
努氏HK 0.02钢HW approx. 30030x30x6
HKG020350E
努氏HK 0.02钢HW approx. 35030x30x6
HKG020400E
努氏HK 0.02钢HW approx. 40030x30x6
HKG020450E
努氏HK 0.02钢HW approx. 45030x30x6
HKG020500E
努氏HK 0.02钢HW approx. 50030x30x6
HKG020550E
努氏HK 0.02钢HW approx. 55030x30x6
HKG020600E
努氏HK 0.02钢HW approx. 60030x30x6
HKG020650E
努氏HK 0.02钢HW approx. 65030x30x6
HKG020700E
努氏HK 0.02钢HW approx. 70030x30x6


HK 0.025

HKG025200E
努氏HK 0.025钢HW approx. 20030x30x6
HKG025250E
努氏HK 0.025钢HW approx. 25030x30x6
HKG025300E
努氏HK 0.025钢HW approx. 30030x30x6
HKG025350E
努氏HK 0.025钢HW approx. 35030x30x6
HKG025400E
努氏HK 0.025钢HW approx. 40030x30x6
HKG025450E
努氏HK 0.025钢HW approx. 45030x30x6
HKG025500E
努氏HK 0.025钢HW approx. 50030x30x6
HKG025550E
努氏HK 0.025钢HW approx. 55030x30x6
HKG025600E
努氏HK 0.025钢HW approx. 60030x30x6
HKG025650E
努氏HK 0.025钢HW approx. 65030x30x6
HKG025700E
努氏HK 0.025钢HW approx. 70030x30x6
HKG025750E
努氏HK 0.025钢HW approx. 75030x30x6
HKG025800E
努氏HK 0.025钢HW approx. 80030x30x6
HKG025850E
努氏HK 0.025钢HW approx. 85030x30x6


HK 0.05

HKG050200E
努氏HK 0.05钢HW approx. 20030x30x6
HKG050250E
努氏HK 0.05钢HW approx. 25030x30x6
HKG050300E
努氏HK 0.05钢HW approx. 30030x30x6
HKG050350E
努氏HK 0.05钢HW approx. 35030x30x6
HKG050400E
努氏HK 0.05钢HW approx. 40030x30x6
HKG050450E
努氏HK 0.05钢HW approx. 45030x30x6
HKG050500E
努氏HK 0.05钢HW approx. 50030x30x6
HKG050550E
努氏HK 0.05钢HW approx. 55030x30x6
HKG050600E
努氏HK 0.05钢HW approx. 60030x30x6
HKG050650E
努氏HK 0.05钢HW approx. 65030x30x6
HKG050700E
努氏HK 0.05钢HW approx. 70030x30x6
HKG050750E
努氏HK 0.05钢HW approx. 75030x30x6
HKG050800E
努氏HK 0.05钢HW approx. 80030x30x6
HKG050850E
努氏HK 0.05钢HW approx. 85030x30x6
HKG050900E
努氏HK 0.05钢HW approx. 90030x30x6


HK 0.1

HKG100200E
努氏HK 0.1钢HW approx. 20030x30x6
HKG100250E
努氏HK 0.1钢HW approx. 25030x30x6
HKG100300E
努氏HK 0.1钢HW approx. 30030x30x6
HKG100350E
努氏HK 0.1钢HW approx. 35030x30x6
HKG100400E
努氏HK 0.1钢HW approx. 40030x30x6
HKG100450E
努氏HK 0.1钢HW approx. 45030x30x6
HKG100500E
努氏HK 0.1钢HW approx. 50030x30x6
HKG100550E
努氏HK 0.1钢HW approx. 55030x30x6
HKG100600E
努氏HK 0.1钢HW approx. 60030x30x6
HKG100650E
努氏HK 0.1钢HW approx. 65030x30x6
HKG100700E
努氏HK 0.1钢HW approx. 70030x30x6
HKG100750E
努氏HK 0.1钢HW approx. 75030x30x6
HKG100800E
努氏HK 0.1钢HW approx. 80030x30x6
HKG100850E
努氏HK 0.1钢HW approx. 85030x30x6
HKG100900E
努氏HK 0.1钢HW approx. 90030x30x6


HK 0.2

HKG200200E
努氏HK 0.2钢HW approx. 20030x30x6
HKG200250E
努氏HK 0.2钢HW approx. 25030x30x6
HKG200300E
努氏HK 0.2钢HW approx. 30030x30x6
HKG200350E
努氏HK 0.2钢HW approx. 35030x30x6
HKG200400E
努氏HK 0.2钢HW approx. 40030x30x6
HKG200450E
努氏HK 0.2钢HW approx. 45030x30x6
HKG200500E
努氏HK 0.2钢HW approx. 50030x30x6
HKG200550E
努氏HK 0.2钢HW approx. 55030x30x6
HKG200600E
努氏HK 0.2钢HW approx. 60030x30x6
HKG200650E
努氏HK 0.2钢HW approx. 65030x30x6
HKG200700E
努氏HK 0.2钢HW approx. 70030x30x6
HKG200750E
努氏HK 0.2钢HW approx. 75030x30x6
HKG200800E
努氏HK 0.2钢HW approx. 80030x30x6
HKG200850E
努氏HK 0.2钢HW approx. 85030x30x6
HKG200900E
努氏HK 0.2钢HW approx. 90030x30x6


HK 0.3

HKG300200E
努氏HK 0.3钢HW approx. 20030x30x6
HKG300250E
努氏HK 0.3钢HW approx. 25030x30x6
HKG300300E
努氏HK 0.3钢HW approx. 30030x30x6
HKG300350E
努氏HK 0.3钢HW approx. 35030x30x6
HKG300400E
努氏HK 0.3钢HW approx. 40030x30x6
HKG300450E
努氏HK 0.3钢HW approx. 45030x30x6
HKG300500E
努氏HK 0.3钢HW approx. 50030x30x6
HKG300550E
努氏HK 0.3钢HW approx. 55030x30x6
HKG300600E
努氏HK 0.3钢HW approx. 60030x30x6
HKG300650E
努氏HK 0.3钢HW approx. 65030x30x6
HKG300700E
努氏HK 0.3钢HW approx. 70030x30x6
HKG300750E
努氏HK 0.3钢HW approx. 75030x30x6
HKG300800E
努氏HK 0.3钢HW approx. 80030x30x6
HKG300850E
努氏HK 0.3钢HW approx. 85030x30x6
HKG300900E
努氏HK 0.3钢HW approx. 90030x30x6


HK 0.5

HKG500200E
努氏HK 0.5钢HW approx. 20030x30x6
HKG500250E
努氏HK 0.5钢HW approx. 25030x30x6
HKG500300E
努氏HK 0.5钢HW approx. 30030x30x6
HKG500350E
努氏HK 0.5钢HW approx. 35030x30x6
HKG500400E
努氏HK 0.5钢HW approx. 40030x30x6
HKG500450E
努氏HK 0.5钢HW approx. 45030x30x6
HKG500500E
努氏HK 0.5钢HW approx. 50030x30x6
HKG500550E
努氏HK 0.5钢HW approx. 55030x30x6
HKG500600E
努氏HK 0.5钢HW approx. 60030x30x6
HKG500650E
努氏HK 0.5钢HW approx. 65030x30x6
HKG500700E
努氏HK 0.5钢HW approx. 70030x30x6
HKG500750E
努氏HK 0.5钢HW approx. 75030x30x6
HKG500800E
努氏HK 0.5钢HW approx. 80030x30x6
HKG500850E
努氏HK 0.5钢HW approx. 85030x30x6
HKG500900E
努氏HK 0.5钢HW approx. 90030x30x6


HK 1

HKK001200E
努氏HK 1钢HW approx. 20030x30x6
HKK001250E
努氏HK 1钢HW approx. 25030x30x6
HKK001300E
努氏HK 1钢HW approx. 30030x30x6
HKK001350E
努氏HK 1钢HW approx. 35030x30x6
HKK001400E
努氏HK 1钢HW approx. 40030x30x6
HKK001450E
努氏HK 1钢HW approx. 45030x30x6
HKK001500E
努氏HK 1钢HW approx. 50030x30x6
HKK001550E
努氏HK 1钢HW approx. 55030x30x6
HKK001600E
努氏HK 1钢HW approx. 60030x30x6
HKK001650E
努氏HK 1钢HW approx. 65030x30x6
HKK001700E
努氏HK 1钢HW approx. 70030x30x6
HKK001750E
努氏HK 1钢HW approx. 75030x30x6
HKK001800E
努氏HK 1钢HW approx. 80030x30x6
HKK001850E
努氏HK 1钢HW approx. 85030x30x6
HKK001900E
努氏HK 1钢HW approx. 90030x30x6


HK 2

HKK002200E
努氏HK 2钢HW approx. 20030x30x6
HKK002250E
努氏HK 2钢HW approx. 25030x30x6
HKK002300E
努氏HK 2钢HW approx. 30030x30x6
HKK002350E
努氏HK 2钢HW approx. 35030x30x6
HKK002400E
努氏HK 2钢HW approx. 40030x30x6
HKK002450E
努氏HK 2钢HW approx. 45030x30x6
HKK002500E
努氏HK 2钢HW approx. 50030x30x6
HKK002550E
努氏HK 2钢HW approx. 55030x30x6
HKK002600E
努氏HK 2钢HW approx. 60030x30x6
HKK002650E
努氏HK 2钢HW approx. 65030x30x6
HKK002700E
努氏HK 2钢HW approx. 70030x30x6
HKK002750E
努氏HK 2钢HW approx. 75030x30x6
HKK002800E
努氏HK 2钢HW approx. 80030x30x6
HKK002850E
努氏HK 2钢HW approx. 85030x30x6
HKK002900E
努氏HK 2钢HW approx. 90030x30x6


洛氏标准硬度块
(DIN EN ISO 6508-3, ASTM E18)

Test procedureTest method材质HardnessDimensions (mm)


HRA

HR0HRA029C
洛氏HRA铝HW approx. 2960x60x16
HR0HRA040C
洛氏HRA铝HW approx. 4060x60x16
HR0HRA045C
洛氏HRA铝HW approx. 4560x60x16
HR0HRA053C
洛氏HRA铝HW approx. 5360x60x16
HR0HRA057C
洛氏HRA钢HW approx. 5760x60x16
HR0HRA060C
洛氏HRA钢HW approx. 6060x60x16
HR0HRA062C
洛氏HRA钢HW approx. 6260x60x16
HR0HRA066C
洛氏HRA钢HW approx. 6660x60x16
HR0HRA069C
洛氏HRA钢HW approx. 6960x60x16
HR0HRA071C
洛氏HRA钢HW approx. 7160x60x16
HR0HRA073C
洛氏HRA钢HW approx. 7360x60x16
HR0HRA075C
洛氏HRA钢HW approx. 7560x60x16
HR0HRA077C
洛氏HRA钢HW approx. 7760x60x16
HR0HRA079C
洛氏HRA钢HW approx. 7960x60x16
HR0HRA080C
洛氏HRA钢HW approx. 8060x60x16
HR0HRA081C
洛氏HRA钢HW approx. 8160x60x16
HR0HRA082C
洛氏HRA钢HW approx. 8260x60x16
HR0HRA083C
洛氏HRA钢HW approx. 8360x60x16
HR0HRA084C
洛氏HRA钢HW approx. 8460x60x16
HR0HRA085C
洛氏HRA钢HW approx. 8560x60x16


HRB

HR0HRB032C
洛氏HRB铝HW approx. 3260x60x16
HR0HRB060C
洛氏HRB铝HW approx. 6060x60x16
HR0HRB072C
洛氏HRB铝HW approx. 7260x60x16
HR0HRB086C
洛氏HRB铝HW approx. 8660x60x16
HR0HRB094C
洛氏HRB钢HW approx. 9460x60x16
HR0HRB098C
洛氏HRB钢HW approx. 9860x60x16


HRC

HR0HRC015C
洛氏HRC钢HW approx. 1560x60x16
HR0HRC019C
洛氏HRC钢HW approx. 1960x60x16
HR0HRC024C
洛氏HRC钢HW approx. 2460x60x16
HR0HRC031C
洛氏HRC钢HW approx. 3160x60x16
HR0HRC037C
洛氏HRC钢HW approx. 3760x60x16
HR0HRC041C
洛氏HRC钢HW approx. 4160x60x16
HR0HRC046C
洛氏HRC钢HW approx. 4660x60x16
HR0HRC049C
洛氏HRC钢HW approx. 4960x60x16
HR0HRC052C
洛氏HRC钢HW approx. 5260x60x16
HR0HRC055C
洛氏HRC钢HW approx. 5560x60x16
HR0HRC058C
洛氏HRC钢HW approx. 5860x60x16
HR0HRC060C
洛氏HRC钢HW approx. 6060x60x16
HR0HRC062C
洛氏HRC钢HW approx. 6260x60x16
HR0HRC063C
洛氏HRC钢HW approx. 6360x60x16
HR0HRC064C
洛氏HRC钢HW approx. 6460x60x16
HR0HRC065C
洛氏HRC钢HW approx. 6560x60x16
HR0HRC066C
洛氏HRC钢HW approx. 6660x60x16
HR0HRC068C
洛氏HRC钢HW approx. 6860x60x16


HRD

HR0HRD045C
洛氏HRD铝HW approx. 4560x60x16
HR0HRD059C
洛氏HRD铝HW approx. 5960x60x16
HR0HRD065C
洛氏HRD钢HW approx. 6560x60x16
HR0HRD069C
洛氏HRD钢HW approx. 6960x60x16
HR0HRD072C
洛氏HRD钢HW approx. 7260x60x16


HRE

HR0HRE088C
洛氏HRE铝HW approx. 8860x60x16
HR0HRE100C
洛氏HRE铝HW approx. 10060x60x16


HRF

HR0HRF077C
洛氏HRF铝HW approx. 7760x60x16
HR0HRF092C
洛氏HRF铝HW approx. 9260x60x16
HR0HRF098C
洛氏HRF铝HW approx. 9860x60x16


HR15N

HR015N070C
洛氏HR15N钢HW approx. 7060x60x16
HR015N075C
洛氏HR15N钢HW approx. 7560x60x16
HR015N078C
洛氏HR15N钢HW approx. 7860x60x16
HR015N081C
洛氏HR15N钢HW approx. 8160x60x16
HR015N083C
洛氏HR15N钢HW approx. 8360x60x16
HR015N085C
洛氏HR15N钢HW approx. 8560x60x16
HR015N086C
洛氏HR15N钢HW approx. 8660x60x16
HR015N088C
洛氏HR15N钢HW approx. 8860x60x16
HR015N089C
洛氏HR15N钢HW approx. 8960x60x16
HR015N090C
洛氏HR15N钢HW approx. 9060x60x16
HR015N091C
洛氏HR15N钢HW approx. 9160x60x16
HR015N092C
洛氏HR15N钢HW approx. 9260x60x16
HR015N093C
洛氏HR15N钢HW approx. 9360x60x16


HR15T

HR015T072C
洛氏HR15T铝HW approx. 7260x60x16
HR015T080C
洛氏HR15T铝HW approx. 8060x60x16
HR015T084C
洛氏HR15T铝HW approx. 8460x60x16
HR015T088C
洛氏HR15T铝HW approx. 8860x60x16
HR015T090C
洛氏HR15T钢HW approx. 9060x60x16
HR015T091C
洛氏HR15T钢HW approx. 9160x60x16
HR015T092C
洛氏HR15T钢HW approx. 9260x60x16
HR015T094C
洛氏HR15T钢HW approx. 9460x60x16


HR30N

HR030N043C
洛氏HR30N钢HW approx. 4360x60x16
HR030N050C
洛氏HR30N钢HW approx. 5060x60x16
HR030N056C
洛氏HR30N钢HW approx. 5660x60x16
HR030N060C
洛氏HR30N钢HW approx. 6060x60x16
HR030N064C
洛氏HR30N钢HW approx. 6460x60x16
HR030N067C
洛氏HR30N钢HW approx. 6760x60x16
HR030N070C
洛氏HR30N钢HW approx. 7060x60x16
HR030N073C
洛氏HR30N钢HW approx. 7360x60x16
HR030N075C
洛氏HR30N钢HW approx. 7560x60x16
HR030N077C
洛氏HR30N钢HW approx. 7760x60x16
HR030N079C
洛氏HR30N钢HW approx. 7960x60x16
HR030N080C
洛氏HR30N钢HW approx. 8060x60x16
HR030N081C
洛氏HR30N钢HW approx. 8160x60x16
HR030N082C
洛氏HR30N钢HW approx. 8260x60x16
HR030N083C
洛氏HR30N钢HW approx. 8360x60x16


HR30T

HR030T040C
洛氏HR30T铝HW approx. 4060x60x16
HR030T057C
洛氏HR30T铝HW approx. 5760x60x16
HR030T064C
洛氏HR30T铝HW approx. 6460x60x16
HR030T073C
洛氏HR30T铝HW approx. 7360x60x16
HR030T077C
洛氏HR30T钢HW approx. 7760x60x16
HR030T080C
洛氏HR30T钢HW approx. 8060x60x16
HR030T082C
洛氏HR30T钢HW approx. 8260x60x16


HR45N

HR045N023C
洛氏HR45N钢HW approx. 2360x60x16
HR045N031C
洛氏HR45N钢HW approx. 3160x60x16
HR045N039C
洛氏HR45N钢HW approx. 3960x60x16
HR045N044C
洛氏HR45N钢HW approx. 4460x60x16
HR045N049C
洛氏HR45N钢HW approx. 4960x60x16
HR045N054C
洛氏HR45N钢HW approx. 5460x60x16
HR045N057C
洛氏HR45N钢HW approx. 5760x60x16
HR045N060C
洛氏HR45N钢HW approx. 6060x60x16
HR045N063C
洛氏HR45N钢HW approx. 6360x60x16
HR045N066C
洛氏HR45N钢HW approx. 6660x60x16
HR045N068C
洛氏HR45N钢HW approx. 6860x60x16
HR045N069C
洛氏HR45N钢HW approx. 6960x60x16
HR045N071C
洛氏HR45N钢HW approx. 7160x60x16
HR045N072C
洛氏HR45N钢HW approx. 7260x60x16
HR045N073C
洛氏HR45N钢HW approx. 7360x60x16
HR045N074C
洛氏HR45N钢HW approx. 7460x60x16


HR45T

HR045T009C
洛氏HR45T铝HW approx. 960x60x16
HR045T034C
洛氏HR45T铝HW approx. 3460x60x16
HR045T045C
洛氏HR45T铝HW approx. 4560x60x16
HR045T059C
洛氏HR45T铝HW approx. 5960x60x16
HR045T065C
洛氏HR45T钢HW approx. 6560x60x16
HR045T069C
洛氏HR45T钢HW approx. 6960x60x16
HR045T072C
洛氏HR45T钢HW approx. 7260x60x16


维氏标准硬度块
(DIN EN ISO 6507-3, ASTM E92)

Test procedureTest method材质HardnessDimensions (mm)


HV 0.01

HVG010200E
维氏HV 0.010钢HW approx. 20030x30x6


HV 0.015

HVG015200E
维氏HV 0.015钢HW approx. 20030x30x6
HVG015250E
维氏HV 0.015钢HW approx. 25030x30x6


HV 0.02

HVG020200E
维氏HV 0.02钢HW approx. 20030x30x6
HVG020250E
维氏HV 0.02钢HW approx. 25030x30x6
HVG020300E
维氏HV 0.02钢HW approx. 30030x30x6


HV 0.025

HVG025200E
维氏HV 0.025钢HW approx. 20030x30x6
HVG025250E
维氏HV 0.025钢HW approx. 25030x30x6
HVG025300E
维氏HV 0.025钢HW approx. 30030x30x6


HV 0.05

HVG050200E
维氏HV 0.05钢HW approx. 20030x30x6
HVG050250E
维氏HV 0.05钢HW approx. 25030x30x6
HVG050300E
维氏HV 0.05钢HW approx. 30030x30x6
HVG050350E
维氏HV 0.05钢HW approx. 35030x30x6
HVG050400E
维氏HV 0.05钢HW approx. 40030x30x6
HVG050450E
维氏HV 0.05钢HW approx. 45030x30x6
HVG050500E
维氏HV 0.05钢HW approx. 50030x30x6
HVG050550E
维氏HV 0.05钢HW approx. 55030x30x6
HVG050600E
维氏HV 0.05钢HW approx. 60030x30x6
HVG050650E
维氏HV 0.05钢HW approx. 65030x30x6
HVG050700E
维氏HV 0.05钢HW approx. 70030x30x6


HV 0.1

HVG100200E
维氏HV 0.1钢HW approx. 20030x30x6
HVG100250E
维氏HV 0.1钢HW approx. 25030x30x6
HVG100300E
维氏HV 0.1钢HW approx. 30030x30x6
HVG100350E
维氏HV 0.1钢HW approx. 35030x30x6
HVG100400E
维氏HV 0.1钢HW approx. 40030x30x6
HVG100450E
维氏HV 0.1钢HW approx. 45030x30x6
HVG100500E
维氏HV 0.1钢HW approx. 50030x30x6
HVG100550E
维氏HV 0.1钢HW approx. 55030x30x6
HVG100600E
维氏HV 0.1钢HW approx. 60030x30x6
HVG100650E
维氏HV 0.1钢HW approx. 65030x30x6
HVG100700E
维氏HV 0.1钢HW approx. 70030x30x6
HVG100750E
维氏HV 0.1钢HW approx. 75030x30x6
HVG100800E
维氏HV 0.1钢HW approx. 80030x30x6
HVG100850E
维氏HV 0.1钢HW approx. 85030x30x6
HVG100900E
维氏HV 0.1钢HW approx. 90030x30x6


HV 0.2

HVG200200E
维氏HV 0.2钢HW approx. 20030x30x6
HVG200250E
维氏HV 0.2钢HW approx. 25030x30x6
HVG200300E
维氏HV 0.2钢HW approx. 30030x30x6
HVG200350E
维氏HV 0.2钢HW approx. 35030x30x6
HVG200400E
维氏HV 0.2钢HW approx. 40030x30x6
HVG200450E
维氏HV 0.2钢HW approx. 45030x30x6
HVG200500E
维氏HV 0.2钢HW approx. 50030x30x6
HVG200550E
维氏HV 0.2钢HW approx. 55030x30x6
HVG200600E
维氏HV 0.2钢HW approx. 60030x30x6
HVG200650E
维氏HV 0.2钢HW approx. 65030x30x6
HVG200700E
维氏HV 0.2钢HW approx. 70030x30x6
HVG200750E
维氏HV 0.2钢HW approx. 75030x30x6
HVG200800E
维氏HV 0.2钢HW approx. 80030x30x6
HVG200850E
维氏HV 0.2钢HW approx. 85030x30x6
HVG200900E
维氏HV 0.2钢HW approx. 90030x30x6


HV 0.3

HVG300200E
维氏HV 0.3钢HW approx. 20030x30x6
HVG300250E
维氏HV 0.3钢HW approx. 25030x30x6
HVG300300E
维氏HV 0.3钢HW approx. 30030x30x6
HVG300350E
维氏HV 0.3钢HW approx. 35030x30x6
HVG300400E
维氏HV 0.3钢HW approx. 40030x30x6
HVG300450E
维氏HV 0.3钢HW approx. 45030x30x6
HVG300500E
维氏HV 0.3钢HW approx. 50030x30x6
HVG300550E
维氏HV 0.3钢HW approx. 55030x30x6
HVG300600E
维氏HV 0.3钢HW approx. 60030x30x6
HVG300650E
维氏HV 0.3钢HW approx. 65030x30x6
HVG300700E
维氏HV 0.3钢HW approx. 70030x30x6
HVG300750E
维氏HV 0.3钢HW approx. 75030x30x6
HVG300800E
维氏HV 0.3钢HW approx. 80030x30x6
HVG300850E
维氏HV 0.3钢HW approx. 85030x30x6
HVG300900E
维氏HV 0.3钢HW approx. 90030x30x6


HV 0.5

HVG500200E
维氏HV 0.5钢HW approx. 20030x30x6
HVG500250E
维氏HV 0.5钢HW approx. 25030x30x6
HVG500300E
维氏HV 0.5钢HW approx. 30030x30x6
HVG500350E
维氏HV 0.5钢HW approx. 35030x30x6
HVG500400E
维氏HV 0.5钢HW approx. 40030x30x6
HVG500450E
维氏HV 0.5钢HW approx. 45030x30x6
HVG500500E
维氏HV 0.5钢HW approx. 50030x30x6
HVG500550E
维氏HV 0.5钢HW approx. 55030x30x6
HVG500600E
维氏HV 0.5钢HW approx. 60030x30x6
HVG500650E
维氏HV 0.5钢HW approx. 65030x30x6
HVG500700E
维氏HV 0.5钢HW approx. 70030x30x6
HVG500750E
维氏HV 0.5钢HW approx. 75030x30x6
HVG500800E
维氏HV 0.5钢HW approx. 80030x30x6
HVG500850E
维氏HV 0.5钢HW approx. 85030x30x6
HVG500900E
维氏HV 0.5钢HW approx. 90030x30x6


HV 1

HVK001200E
维氏HV 1钢HW approx. 20030x30x6
HVK001250E
维氏HV 1钢HW approx. 25030x30x6
HVK001300E
维氏HV 1钢HW approx. 30030x30x6
HVK001350E
维氏HV 1钢HW approx. 35030x30x6
HVK001400E
维氏HV 1钢HW approx. 40030x30x6
HVK001450E
维氏HV 1钢HW approx. 45030x30x6
HVK001500E
维氏HV 1钢HW approx. 50030x30x6
HVK001550E
维氏HV 1钢HW approx. 55030x30x6
HVK001600E
维氏HV 1钢HW approx. 60030x30x6
HVK001650E
维氏HV 1钢HW approx. 65030x30x6
HVK001700E
维氏HV 1钢HW approx. 70030x30x6
HVK001750E
维氏HV 1钢HW approx. 75030x30x6
HVK001800E
维氏HV 1钢HW approx. 80030x30x6
HVK001850E
维氏HV 1钢HW approx. 85030x30x6
HVK001900E
维氏HV 1钢HW approx. 90030x30x6


HV 1

HVK001080C
维氏HV 1铝HW approx. 8060x60x16
HVK001110C
维氏HV 1铝HW approx. 11060x60x16
HVK001130C
维氏HV 1铝HW approx. 13060x60x16
HVK001170C
维氏HV 1铝HW approx. 17060x60x16
HVK001200C
维氏HV 1钢HW approx. 20060x60x16
HVK001250C
维氏HV 1钢HW approx. 25060x60x16
HVK001300C
维氏HV 1钢HW approx. 30060x60x16
HVK001350C
维氏HV 1钢HW approx. 35060x60x16
HVK001400C
维氏HV 1钢HW approx. 40060x60x16
HVK001450C
维氏HV 1钢HW approx. 45060x60x16
HVK001500C
维氏HV 1钢HW approx. 50060x60x16
HVK001550C
维氏HV 1钢HW approx. 55060x60x16
HVK001600C
维氏HV 1钢HW approx. 60060x60x16
HVK001650C
维氏HV 1钢HW approx. 65060x60x16
HVK001700C
维氏HV 1钢HW approx. 70060x60x16
HVK001750C
维氏HV 1钢HW approx. 75060x60x16
HVK001800C
维氏HV 1钢HW approx. 80060x60x16
HVK001850C
维氏HV 1钢HW approx. 85060x60x16
HVK001900C
维氏HV 1钢HW approx. 90060x60x16


HV 2

HVK002200E
维氏HV 2钢HW approx. 20030x30x6
HVK002250E
维氏HV 2钢HW approx. 25030x30x6
HVK002300E
维氏HV 2钢HW approx. 30030x30x6
HVK002350E
维氏HV 2钢HW approx. 35030x30x6
HVK002400E
维氏HV 2钢HW approx. 40030x30x6
HVK002450E
维氏HV 2钢HW approx. 45030x30x6
HVK002500E
维氏HV 2钢HW approx. 50030x30x6
HVK002550E
维氏HV 2钢HW approx. 55030x30x6
HVK002600E
维氏HV 2钢HW approx. 60030x30x6
HVK002650E
维氏HV 2钢HW approx. 65030x30x6
HVK002700E
维氏HV 2钢HW approx. 70030x30x6
HVK002750E
维氏HV 2钢HW approx. 75030x30x6
HVK002800E
维氏HV 2钢HW approx. 80030x30x6
HVK002850E
维氏HV 2钢HW approx. 85030x30x6
HVK002900E
维氏HV 2钢HW approx. 90030x30x6


HV 2

HVK002080C
维氏HV 2铝HW approx. 8060x60x16
HVK002110C
维氏HV 2铝HW approx. 11060x60x16
HVK002130C
维氏HV 2铝HW approx. 13060x60x16
HVK002170C
维氏HV 2铝HW approx. 17060x60x16
HVK002200C
维氏HV 2钢HW approx. 20060x60x16
HVK002250C
维氏HV 2钢HW approx. 25060x60x16
HVK002300C
维氏HV 2钢HW approx. 30060x60x16
HVK002350C
维氏HV 2钢HW approx. 35060x60x16
HVK002400C
维氏HV 2钢HW approx. 40060x60x16
HVK002450C
维氏HV 2钢HW approx. 45060x60x16
HVK002500C
维氏HV 2钢HW approx. 50060x60x16
HVK002550C
维氏HV 2钢HW approx. 55060x60x16
HVK002600C
维氏HV 2钢HW approx. 60060x60x16
HVK002650C
维氏HV 2钢HW approx. 65060x60x16
HVK002700C
维氏HV 2钢HW approx. 70060x60x16
HVK002750C
维氏HV 2钢HW approx. 75060x60x16
HVK002800C
维氏HV 2钢HW approx. 80060x60x16
HVK002850C
维氏HV 2钢HW approx. 85060x60x16
HVK002900C
维氏HV 2钢HW approx. 90060x60x16


HV 3

HVK003080C
维氏HV 3铝HW approx. 8060x60x16
HVK003110C
维氏HV 3铝HW approx. 11060x60x16
HVK003130C
维氏HV 3铝HW approx. 13060x60x16
HVK003170C
维氏HV 3铝HW approx. 17060x60x16
HVK003200C
维氏HV 3钢HW approx. 20060x60x16
HVK003250C
维氏HV 3钢HW approx. 25060x60x16
HVK003300C
维氏HV 3钢HW approx. 30060x60x16
HVK003350C
维氏HV 3钢HW approx. 35060x60x16
HVK003400C
维氏HV 3钢HW approx. 40060x60x16
HVK003450C
维氏HV 3钢HW approx. 45060x60x16
HVK003500C
维氏HV 3钢HW approx. 50060x60x16
HVK003550C
维氏HV 3钢HW approx. 55060x60x16
HVK003600C
维氏HV 3钢HW approx. 60060x60x16
HVK003650C
维氏HV 3钢HW approx. 65060x60x16
HVK003700C
维氏HV 3钢HW approx. 70060x60x16
HVK003750C
维氏HV 3钢HW approx. 75060x60x16
HVK003800C
维氏HV 3钢HW approx. 80060x60x16
HVK003850C
维氏HV 3钢HW approx. 85060x60x16
HVK003900C
维氏HV 3钢HW approx. 90060x60x16


HV 5

HVK005080C
维氏HV 5铝HW approx. 8060x60x16
HVK005110C
维氏HV 5铝HW approx. 11060x60x16
HVK005130C
维氏HV 5铝HW approx. 13060x60x16
HVK005170C
维氏HV 5铝HW approx. 17060x60x16
HVK005200C
维氏HV 5钢HW approx. 20060x60x16
HVK005250C
维氏HV 5钢HW approx. 25060x60x16
HVK005300C
维氏HV 5钢HW approx. 30060x60x16
HVK005350C
维氏HV 5钢HW approx. 35060x60x16
HVK005400C
维氏HV 5钢HW approx. 40060x60x16
HVK005450C
维氏HV 5钢HW approx. 45060x60x16
HVK005500C
维氏HV 5钢HW approx. 50060x60x16
HVK005550C
维氏HV 5钢HW approx. 55060x60x16
HVK005600C
维氏HV 5钢HW approx. 60060x60x16
HVK005650C
维氏HV 5钢HW approx. 65060x60x16
HVK005700C
维氏HV 5钢HW approx. 70060x60x16
HVK005750C
维氏HV 5钢HW approx. 75060x60x16
HVK005800C
维氏HV 5钢HW approx. 80060x60x16
HVK005850C
维氏HV 5钢HW approx. 85060x60x16
HVK005900C
维氏HV 5钢HW approx. 90060x60x16


HV 10

HVK010080C
维氏HV 10铝HW approx. 8060x60x16
HVK010110C
维氏HV 10铝HW approx. 11060x60x16
HVK010130C
维氏HV 10铝HW approx. 13060x60x16
HVK010170C
维氏HV 10铝HW approx. 17060x60x16
HVK010200C
维氏HV 10钢HW approx. 20060x60x16
HVK010250C
维氏HV 10钢HW approx. 25060x60x16
HVK010300C
维氏HV 10钢HW approx. 30060x60x16
HVK010350C
维氏HV 10钢HW approx. 35060x60x16
HVK010400C
维氏HV 10钢HW approx. 40060x60x16
HVK010450C
维氏HV 10钢HW approx. 45060x60x16
HVK010500C
维氏HV 10钢HW approx. 50060x60x16
HVK010550C
维氏HV 10钢HW approx. 55060x60x16
HVK010600C
维氏HV 10钢HW approx. 60060x60x16
HVK010650C
维氏HV 10钢HW approx. 65060x60x16
HVK010700C
维氏HV 10钢HW approx. 70060x60x16
HVK010750C
维氏HV 10钢HW approx. 75060x60x16
HVK010800C
维氏HV 10钢HW approx. 80060x60x16
HVK010850C
维氏HV 10钢HW approx. 85060x60x16
HVK010900C
维氏HV 10钢HW approx. 90060x60x16


HV 20

HVK020080C
维氏HV 20铝HW approx. 8060x60x16
HVK020110C
维氏HV 20铝HW approx. 11060x60x16
HVK020130C
维氏HV 20铝HW approx. 13060x60x16
HVK020170C
维氏HV 20铝HW approx. 17060x60x16
HVK020200C
维氏HV 20钢HW approx. 20060x60x16
HVK020250C
维氏HV 20钢HW approx. 25060x60x16
HVK020300C
维氏HV 20钢HW approx. 30060x60x16
HVK020350C
维氏HV 20钢HW approx. 35060x60x16
HVK020400C
维氏HV 20钢HW approx. 40060x60x16
HVK020450C
维氏HV 20钢HW approx. 45060x60x16
HVK020500C
维氏HV 20钢HW approx. 50060x60x16
HVK020550C
维氏HV 20钢HW approx. 55060x60x16
HVK020600C
维氏HV 20钢HW approx. 60060x60x16
HVK020650C
维氏HV 20钢HW approx. 65060x60x16
HVK020700C
维氏HV 20钢HW approx. 70060x60x16
HVK020750C
维氏HV 20钢HW approx. 75060x60x16
HVK020800C
维氏HV 20钢HW approx. 80060x60x16
HVK020850C
维氏HV 20钢HW approx. 85060x60x16
HVK020900C
维氏HV 20钢HW approx. 90060x60x16


HV 30

HVK030080C
维氏HV 30铝HW approx. 8060x60x16
HVK030110C
维氏HV 30铝HW approx. 11060x60x16
HVK030130C
维氏HV 30铝HW approx. 13060x60x16
HVK030170C
维氏HV 30铝HW approx. 17060x60x16
HVK030200C
维氏HV 30钢HW approx. 20060x60x16
HVK030250C
维氏HV 30钢HW approx. 25060x60x16
HVK030300C
维氏HV 30钢HW approx. 30060x60x16
HVK030350C
维氏HV 30钢HW approx. 35060x60x16
HVK030400C
维氏HV 30钢HW approx. 40060x60x16
HVK030450C
维氏HV 30钢HW approx. 45060x60x16
HVK030500C
维氏HV 30钢HW approx. 50060x60x16
HVK030550C
维氏HV 30钢HW approx. 55060x60x16
HVK030600C
维氏HV 30钢HW approx. 60060x60x16
HVK030650C
维氏HV 30钢HW approx. 65060x60x16
HVK030700C
维氏HV 30钢HW approx. 70060x60x16
HVK030750C
维氏HV 30钢HW approx. 75060x60x16
HVK030800C
维氏HV 30钢HW approx. 80060x60x16
HVK030850C
维氏HV 30钢HW approx. 85060x60x16
HVK030900C
维氏HV 30钢HW approx. 90060x60x16


HV 50

HVK050080C
维氏HV 50铝HW approx. 8060x60x16
HVK050110C
维氏HV 50铝HW approx. 11060x60x16
HVK050130C
维氏HV 50铝HW approx. 13060x60x16
HVK050170C
维氏HV 50铝HW approx. 17060x60x16
HVK050200C
维氏HV 50钢HW approx. 20060x60x16
HVK050250C
维氏HV 50钢HW approx. 25060x60x16
HVK050300C
维氏HV 50钢HW approx. 30060x60x16
HVK050350C
维氏HV 50钢HW approx. 35060x60x16
HVK050400C
维氏HV 50钢HW approx. 40060x60x16
HVK050450C
维氏HV 50钢HW approx. 45060x60x16
HVK050500C
维氏HV 50钢HW approx. 50060x60x16
HVK050550C
维氏HV 50钢HW approx. 55060x60x16
HVK050600C
维氏HV 50钢HW approx. 60060x60x16
HVK050650C
维氏HV 50钢HW approx. 65060x60x16
HVK050700C
维氏HV 50钢HW approx. 70060x60x16
HVK050750C
维氏HV 50钢HW approx. 75060x60x16
HVK050800C
维氏HV 50钢HW approx. 80060x60x16
HVK050850C
维氏HV 50钢HW approx. 85060x60x16
HVK050900C
维氏HV 50钢HW approx. 90060x60x16


HV 100

HVK100080C
维氏HV 100铝HW approx. 8060x60x16
HVK100110C
维氏HV 100铝HW approx. 11060x60x16
HVK100130C
维氏HV 100铝HW approx. 13060x60x16
HVK100170C
维氏HV 100铝HW approx. 17060x60x16
HVK100200C
维氏HV 100钢HW approx. 20060x60x16
HVK100250C
维氏HV 100钢HW approx. 25060x60x16
HVK100300C
维氏HV 100钢HW approx. 30060x60x16
HVK100350C
维氏HV 100钢HW approx. 35060x60x16
HVK100400C
维氏HV 100钢HW approx. 40060x60x16
HVK100450C
维氏HV 100钢HW approx. 45060x60x16
HVK100500C
维氏HV 100钢HW approx. 50060x60x16
HVK100550C
维氏HV 100钢HW approx. 55060x60x16
HVK100600C
维氏HV 100钢HW approx. 60060x60x16
HVK100650C
维氏HV 100钢HW approx. 65060x60x16
HVK100700C
维氏HV 100钢HW approx. 70060x60x16
HVK100750C
维氏HV 100钢HW approx. 75060x60x16
HVK100800C
维氏HV 100钢HW approx. 80060x60x16
HVK100850C
维氏HV 100钢HW approx. 85060x60x16
HVK100900C
维氏HV 100钢HW approx. 90060x60x16


宏观金刚石压头

• with DAkkS/ASTM Certificate, 带DAkkS/ASTM证书
QER28000EA洛氏金刚石压头, 28 mm, 6.5 mm
QER28400EA洛氏金刚石压头, 28 mm, 3.8 mm
QEV28000EA维氏金刚石压头, ≥HV0.01, 28 mm, 6.5 mm
QEV28000EZ维氏金刚石压头, ≥HV5, 28 mm, 6.5 mm only with DAkkS Certificate


努氏金刚石压头, 28 mm, 6.5 mm

嵌入式球压头–宏观硬度
描述
• with DAkkS/ASTM Certificate, 带DAkkS/ASTM证书
QEB28010EA1mm球压头，嵌入式
QEB28025EA2.5mm球压头，嵌入式
QEB28050EA5mm球压头，嵌入式
QEB28100EA10mm球压头，嵌入式
QEB28116EA1/16"球压头，嵌入式


1/8"球压头，嵌入式

QEB28104EA1/4"球压头，嵌入式
QEB28102EA1/2"球压头，嵌入式
球压头，可更换球-宏观硬度
描述
• with DAkkS/ASTM Certificate
QEB28025AA2.5mm球压头-可更换式


5mm球压头-可更换式

QEB28100AA10mm球压头-可更换式
QEB28108AA1/8"球压头-可更换式
QEB28104AA1/4"球压头-可更换式
QEB28102AA1/2"球压头-可更换式
球压头用硬质合金球，可更换 - 宏观硬度
描述


• with DAkkS/ASTM Certificate

QKG010025A硬质合金球 2.5 mm
QKG010050A硬质合金球5 mm
QKG010100A硬质合金球 10 mm
QKG011108A硬质合金球 1/8"
QKG011104A硬质合金球 1/4"
QKG011102A硬质合金球 1/2"
显微金刚石压头
描述
带DAkkS/ASTM证书
QEV05000EA维氏金刚石压头
QEK05000EA努氏金刚石压头
QEB05010EA1mm球压头，嵌入式
QEB05025EA2.5mm球压头，嵌入式
QEB05050EA5mm球压头，嵌入式
QEB05116EABall holder with 1/16" ball, pressed-in
硬度转换表海报
描述
95016705硬度转换表海报
Baidu
map
